METALMAX STANDING SEAM PANELS
Standing seam metal roofing is a premium roofing system known for its sleek appearance, exceptional durability, and superior weather resistance. At MetalMax, we offer four high-performance standing seam panel profiles— MaxLoc100™, MaxSeam175™, MaxSnap150™, and MaxMech™—each designed with concealed fastener systems that eliminate exposed screws, reducing the risk of leaks and enhancing long-term performance. These panels are ideal for residential, commercial, and agricultural applications where aesthetics and structural integrity are equally important.
Crafted from Galvalume® coated steel and finished with Sherwin-Williams WeatherXL™ coatings, our standing seam panels provide long-lasting protection and a modern architectural look. With the various applications of our many standing seam panels, MetalMax has the right solution for your project.
- Residential Homes
- Commercial Structures
- Institutional Buildings
- Recreational Facilities
- Agricultural Structures
STANDING SEAM ADVANTAGES
Roll-Forming
Both MaxLoc100™ and MaxSeam175™ feature concealed fastener systems that eliminate exposed screws, reducing the risk of leaks and ensuring long-term protection against rain, snow, and wind.
Manufactured from Galvalume® coated steel and available in 26 or 24 gauge, these panels are built to withstand harsh environments and resist corrosion, offering decades of reliable performance.
With sleek vertical seams and a clean, architectural finish, standing seam panels enhance the visual appeal of any structure from homes to commercial buildings.
Finished with Sherwin-Williams WeatherXL™, these panels reflect solar heat and come in a wide range of vibrant, fade-resistant colors to match any design aesthetic.
Metal roofing is naturally fire-resistant and offers excellent impact protection, making it a safe and resilient choice for areas prone to extreme weather.
Many MetalMax locations can form all of our Standing Seam Profiles on site with our job-site roll-former allowing us to measure and cut profiles specifically for your project on site to save time.

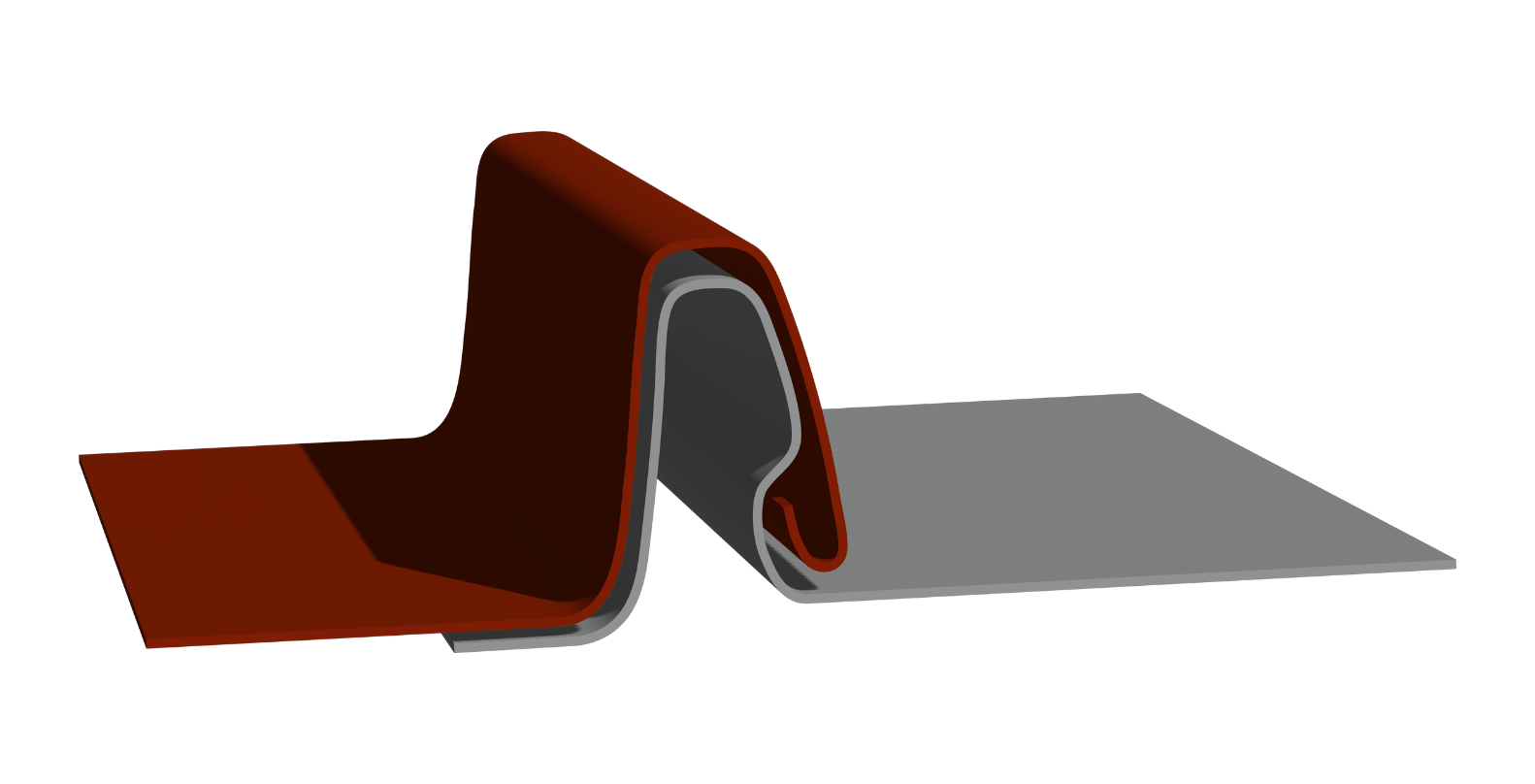

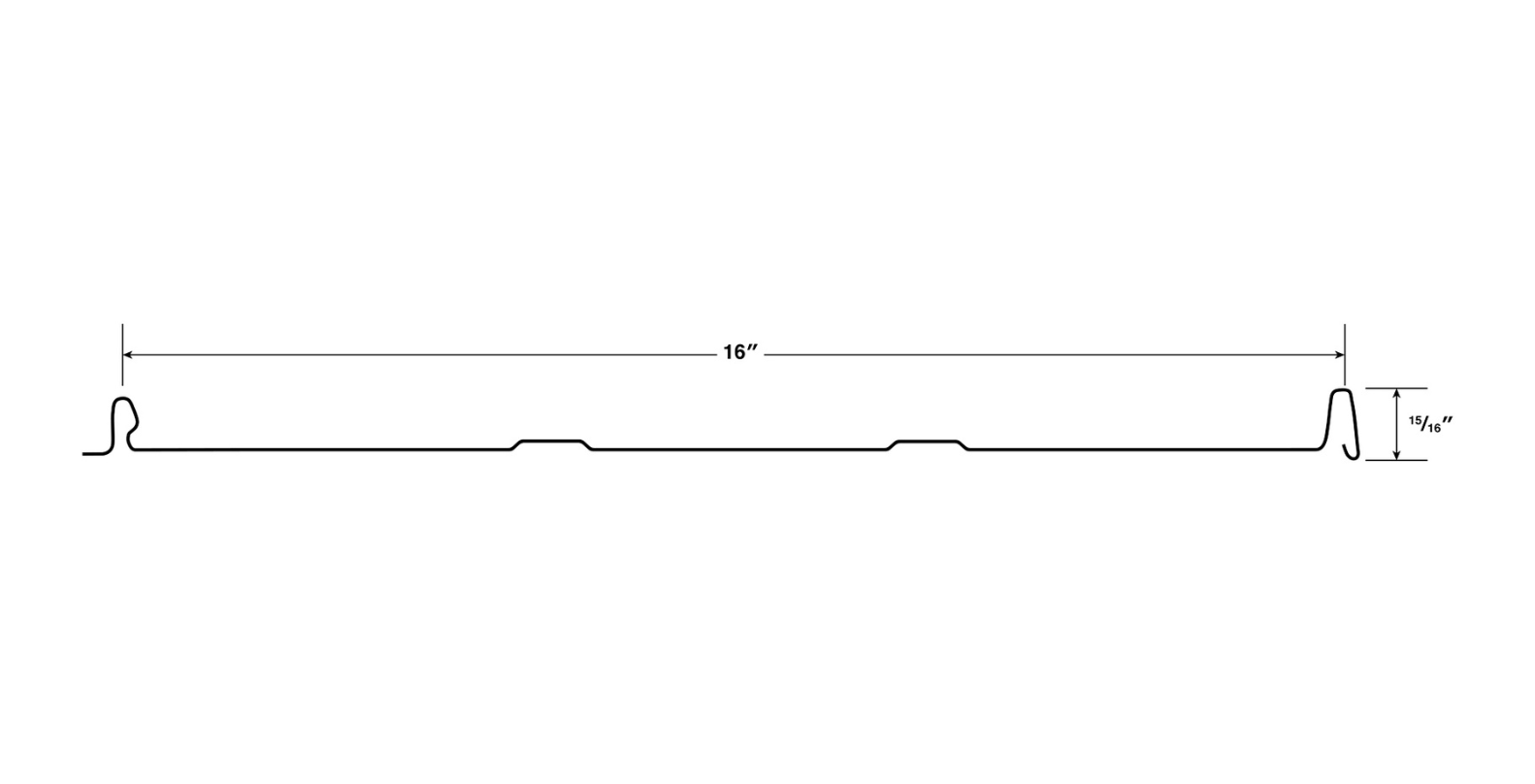

The MaxLoc100™ panel is a cost-effective standing seam option that combines clean aesthetics with reliable performance. Featuring a 16” coverage width and ⅞” rib height, it installs over solid substrates using a concealed fastener leg, minimizing the risk of leaks and enhancing curb appeal. Its flat surface and vertical seams create a modern look ideal for residential and light commercial applications. Made from Galvalume® coated steel and available in 26 or 24 gauge, or .032” aluminum, MaxLoc100™ is finished with Sherwin-Williams WeatherXL™ for long-lasting color and durability. It’s the more economical of MetalMax’s five standing seam profiles.

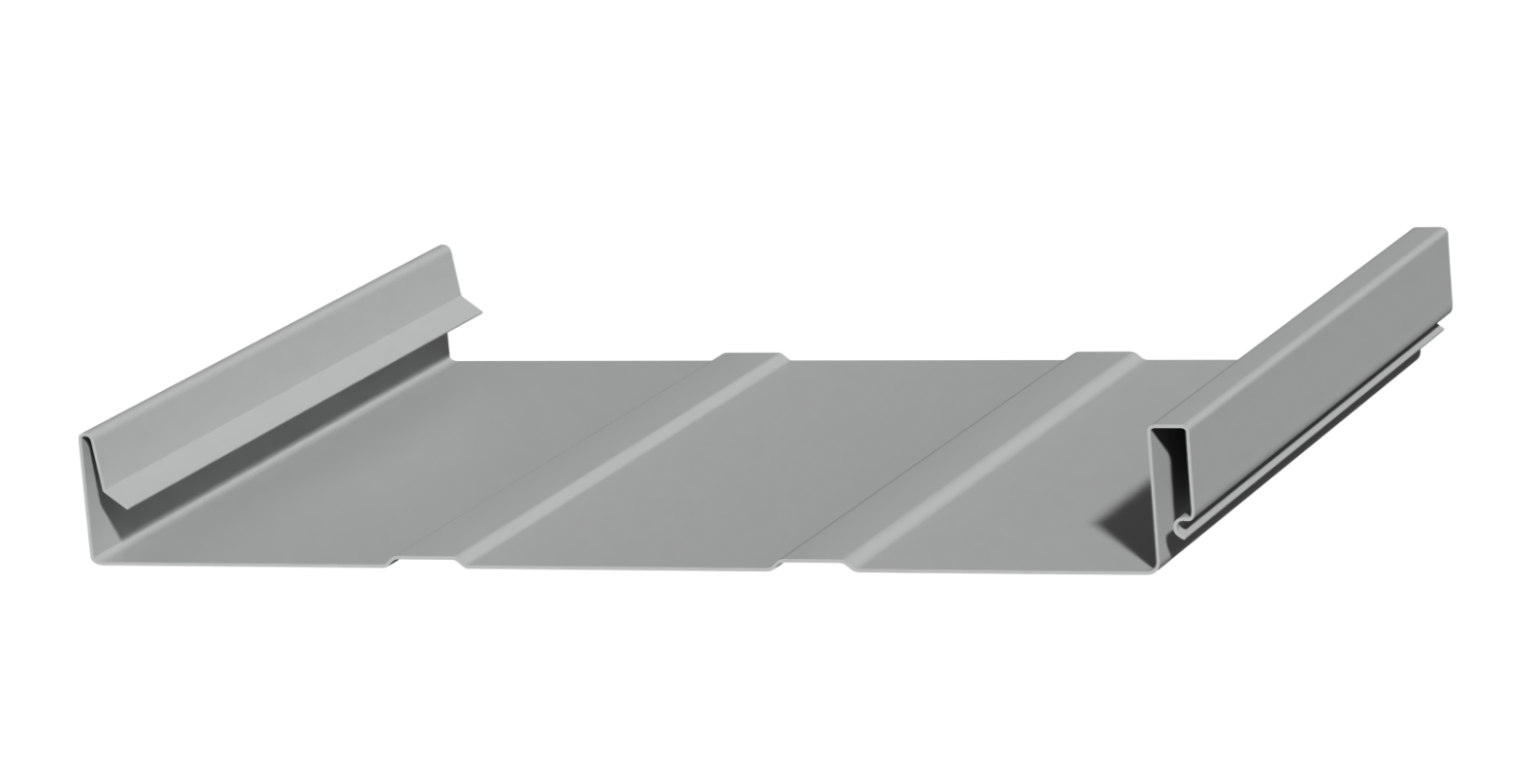

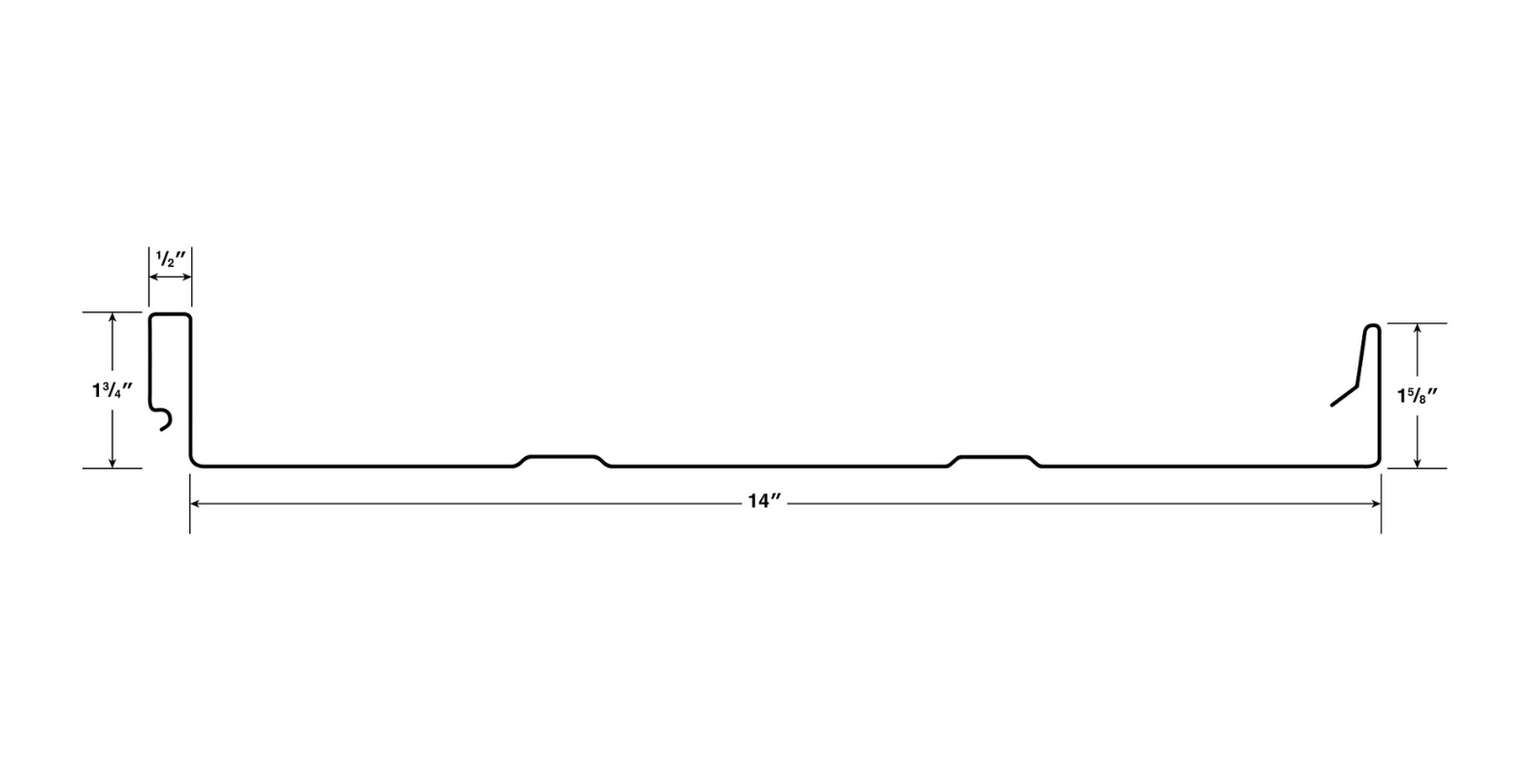

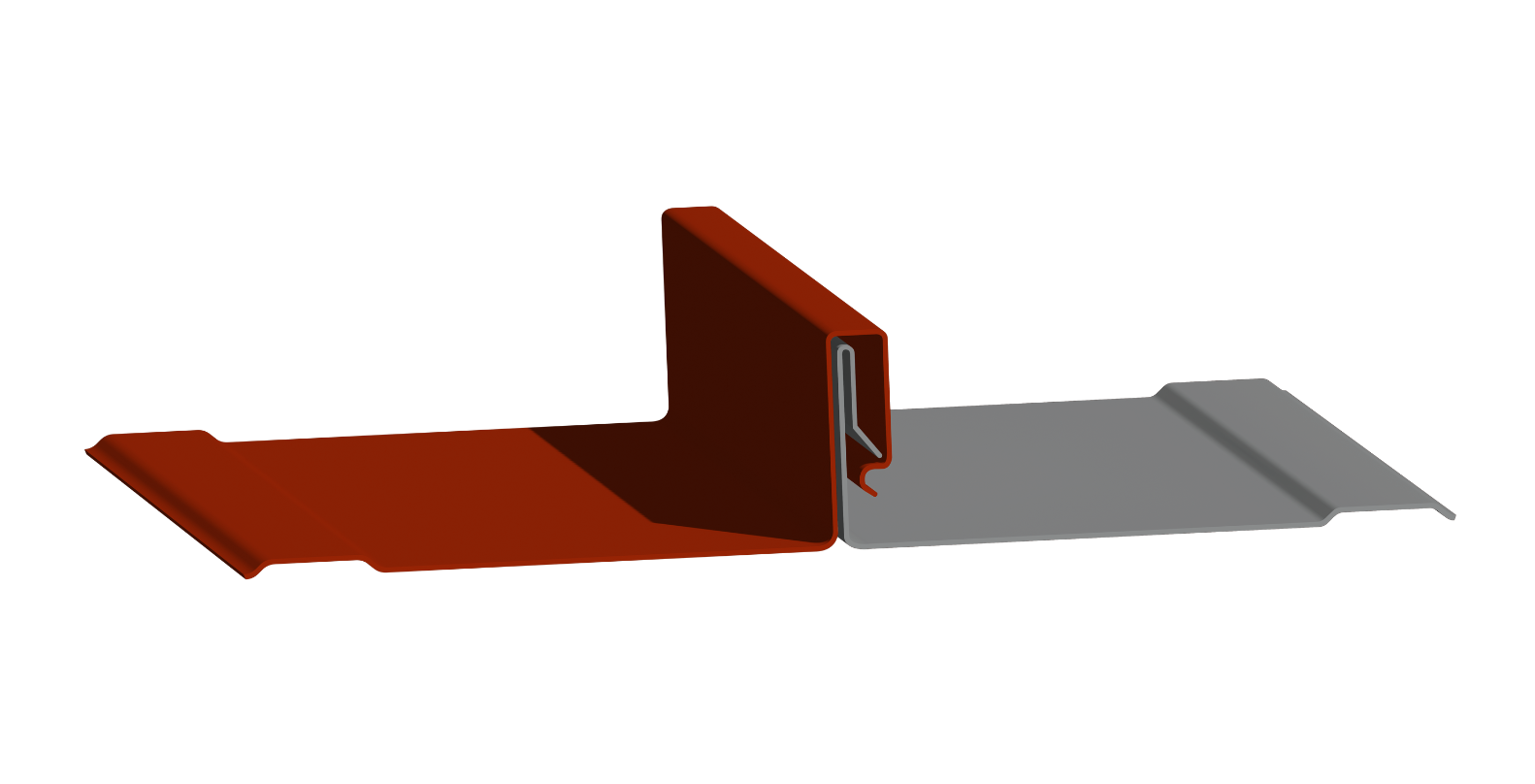

The MaxSeam175™ panel offers a premium standing seam solution with a bold architectural profile. With up to 18” coverage and an impressive 1¾” rib height, it delivers a high-end appearance while maintaining superior weather-tightness. Installed over solid substrates using a hidden clip system, MaxSeam175™ allows for thermal expansion and contraction, making it ideal for climates with extreme temperature shifts. Crafted from Galvalume® coated steel in 26 or 24 gauge, or .032” and .040” aluminum, and finished with Sherwin-Williams WeatherXL™, this panel is perfect for upscale residential, commercial, or institutional projects where performance and style matter.

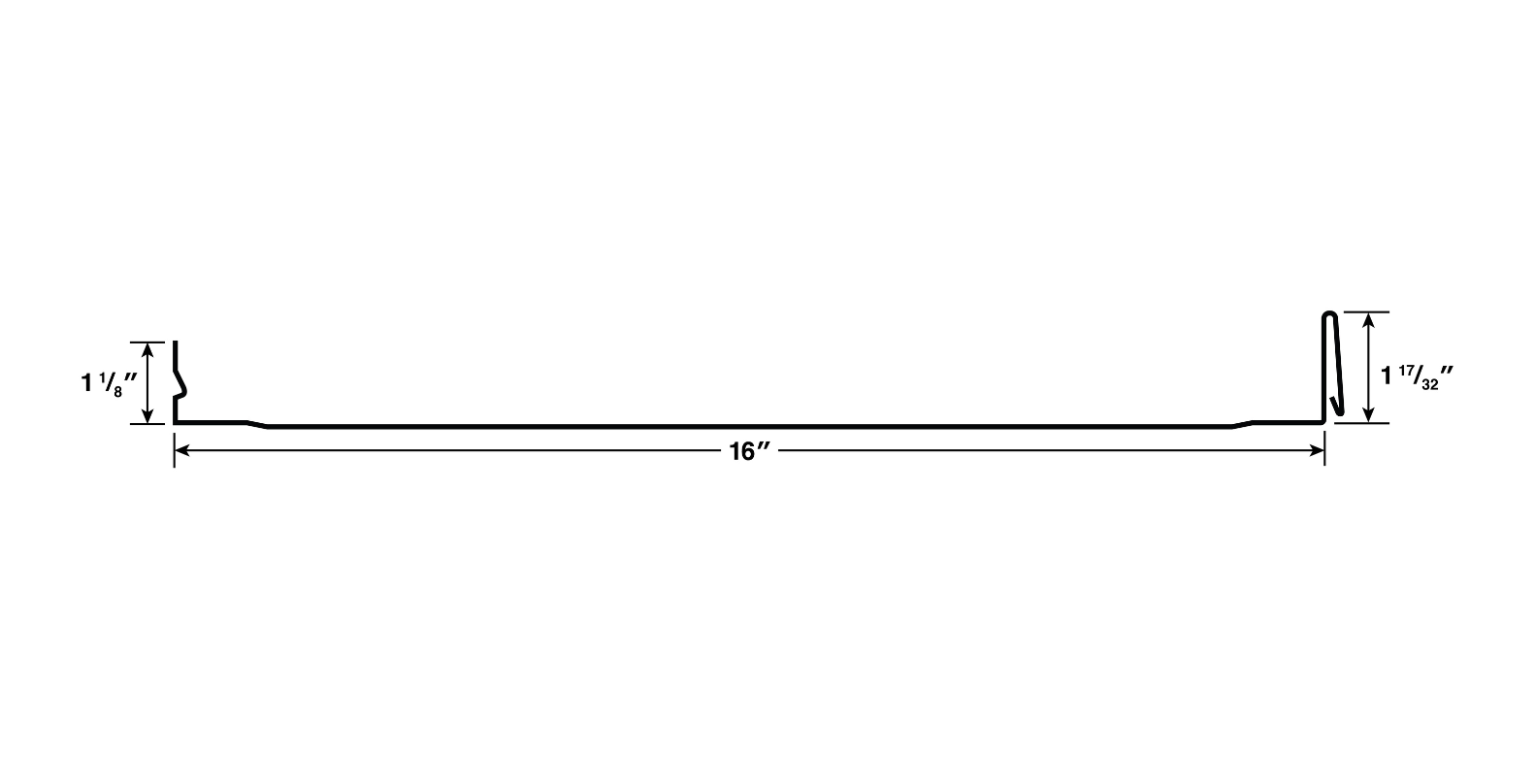

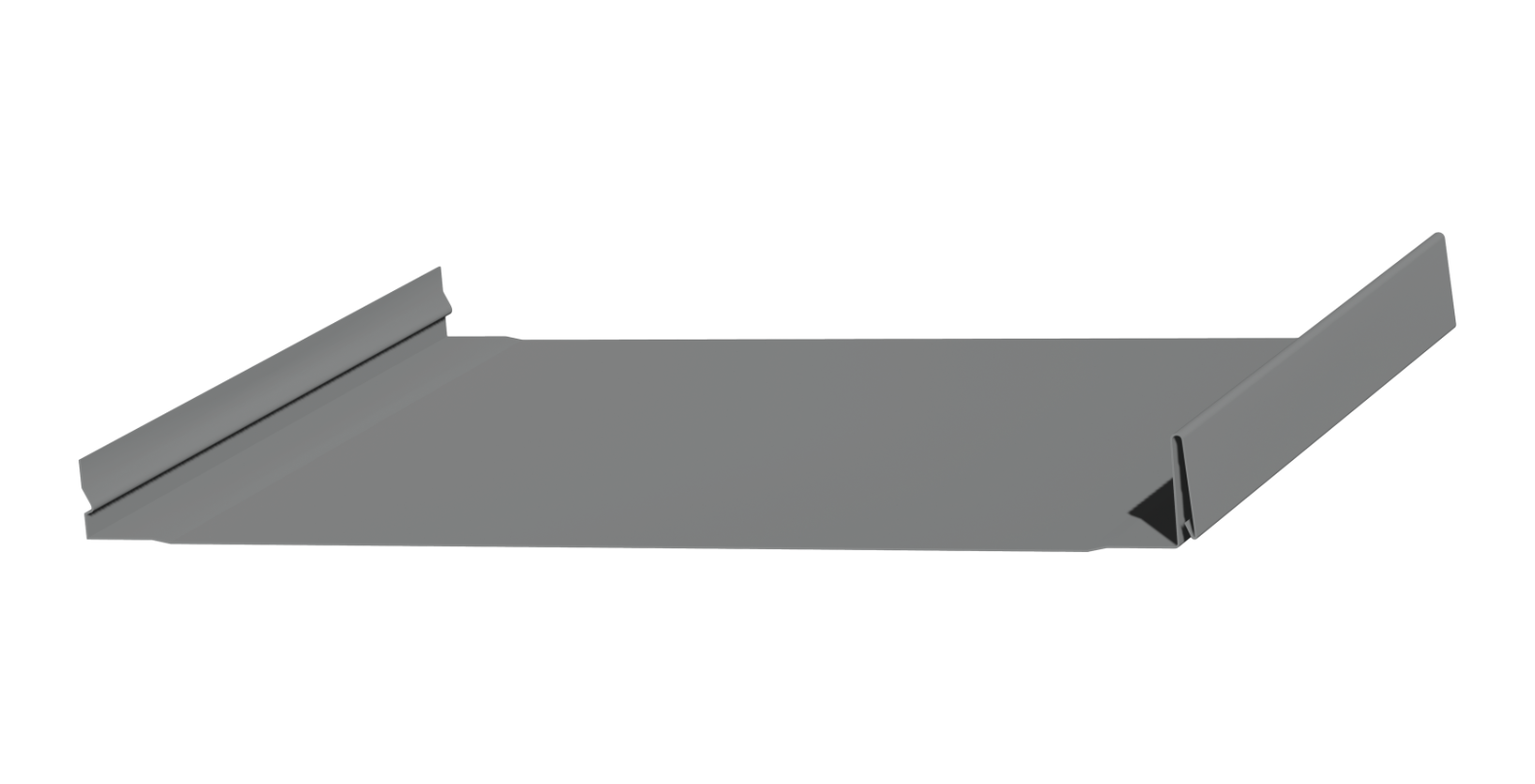

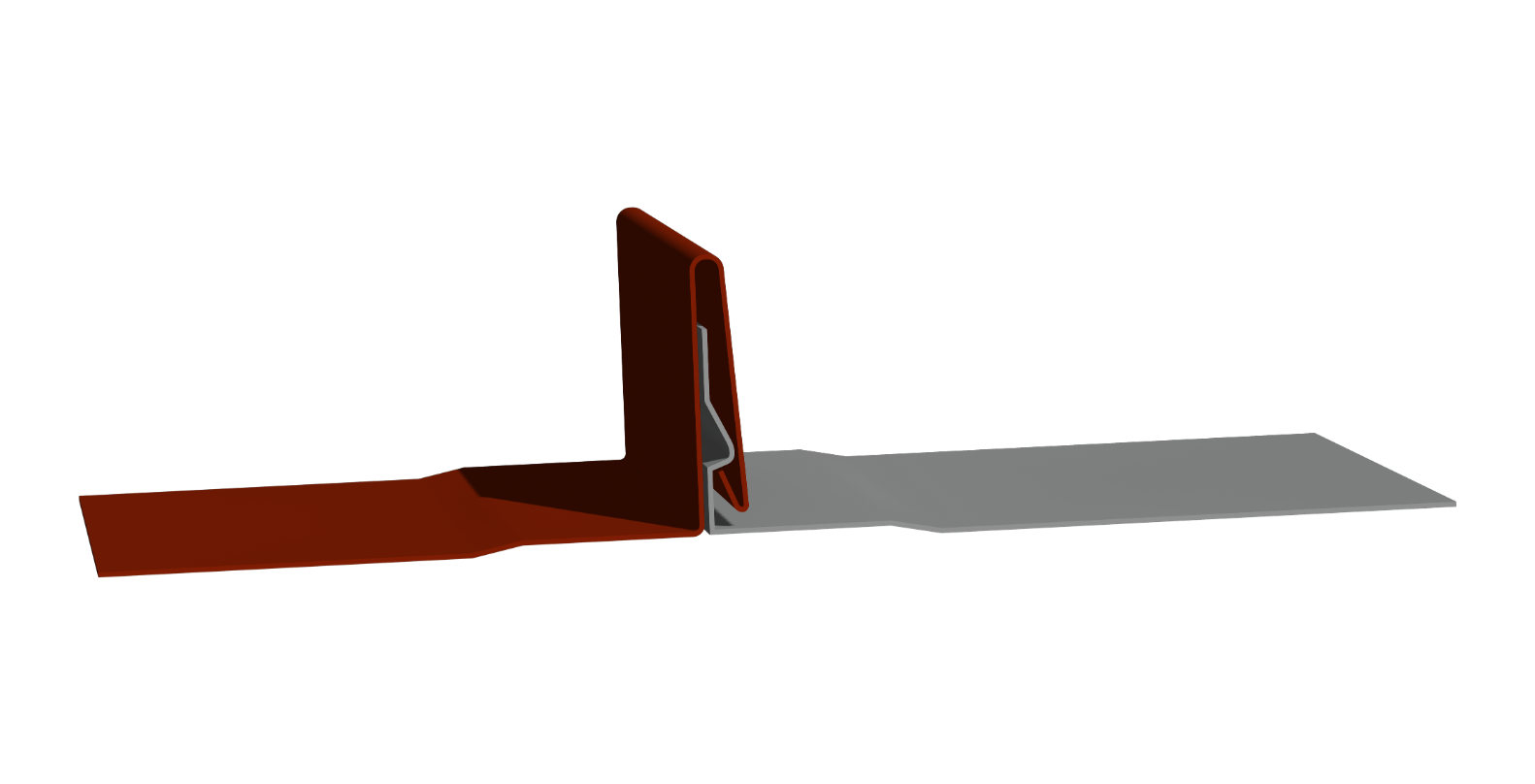

The MaxSnap150™ panel is a premium standing seam roofing solution featuring a 1.5” rib height for bold, clean lines and superior performance. Its snap-lock design installs quickly without seaming tools, using concealed clips that allow thermal movement. MaxSnap150™ delivers long-lasting durability, exceptional leak protection, and a sleek architectural look for commercial, residential, and industrial applications. Perfect for mid to steep roof slop designs, this panel combines efficiency, strength, and modern aesthetics, making it a top choice for projects demanding both style and structural integrity.

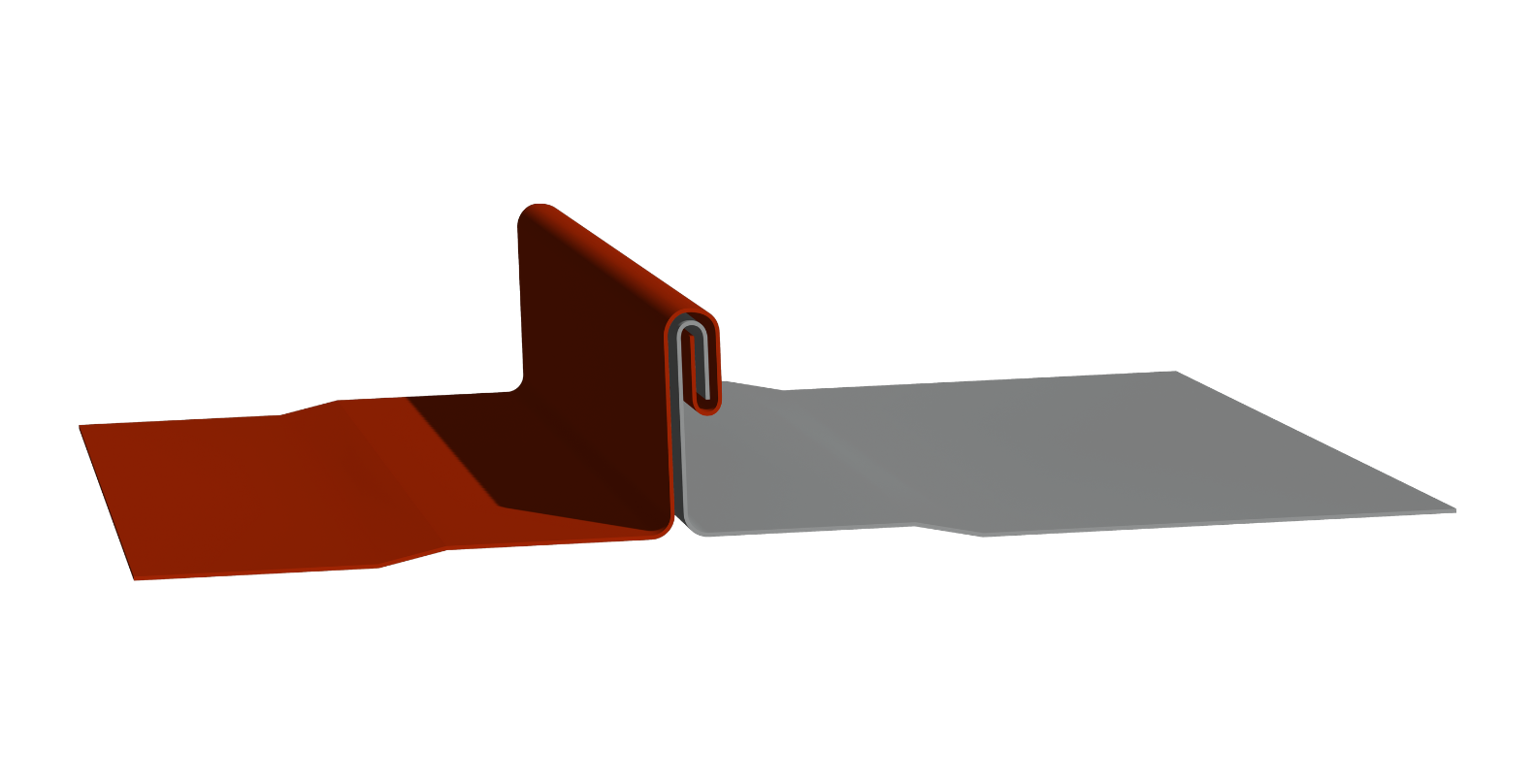

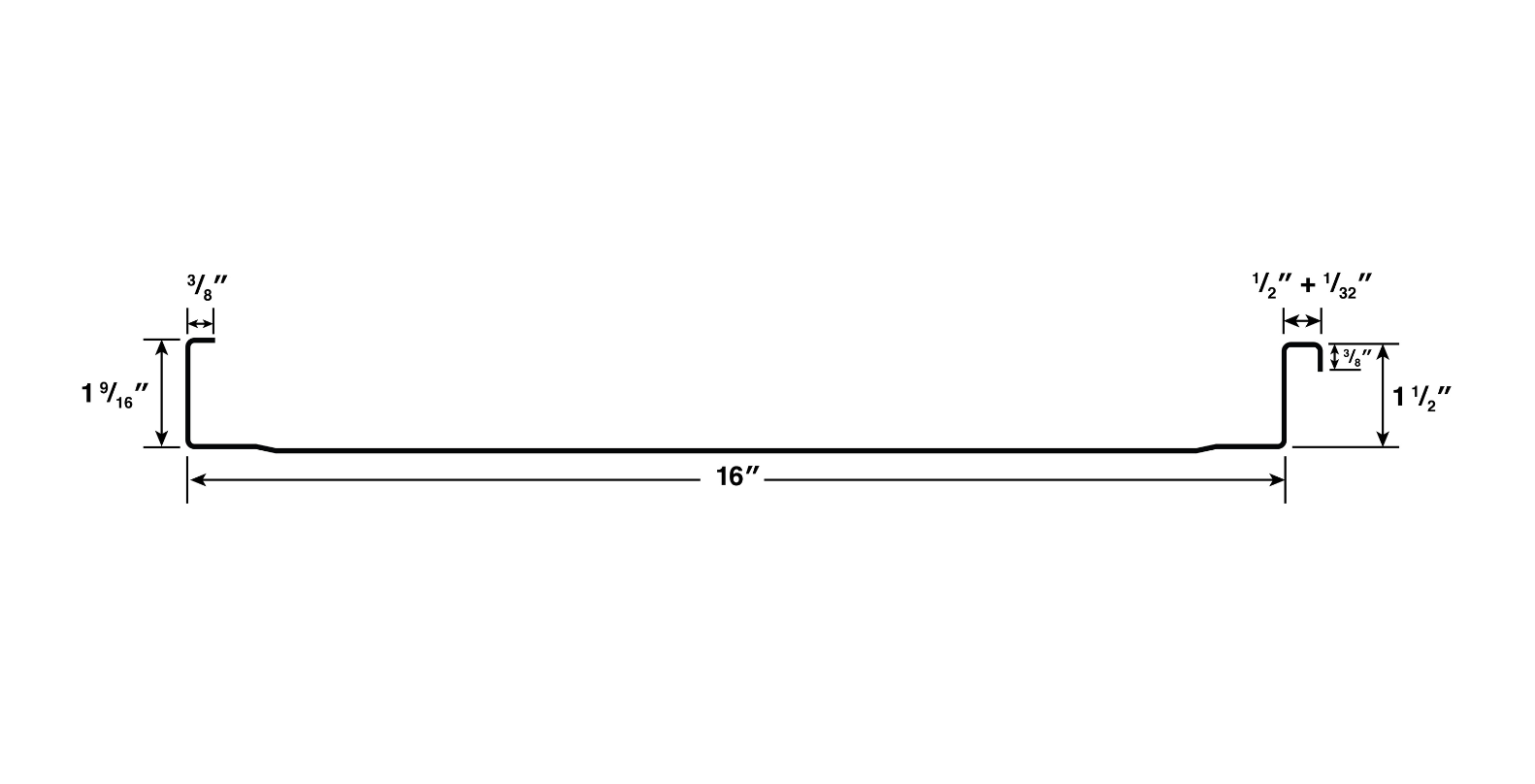

The MaxMech150™ panel is a mechanical seam standing seam system featuring a 1.5” seam height for a sleek, low-profile look. It uses concealed fasteners and double-lock seams to allow thermal movement, reducing structural stress and ensuring long-term performance. Ideal for low-slope roofs, MaxMech150™ offers superior weather resistance, energy efficiency, and architectural appeal. Its precision-engineered design withstands wind and snow loads, making it a durable solution for commercial, industrial, and high-end projects requiring strength and aesthetics.
The MaxMech200™ panel delivers maximum durability with a 2” seam height for enhanced structural integrity and weather protection. This mechanical seam system uses concealed fasteners and double-lock seams to accommodate thermal movement, preventing leaks and distortion over time. Engineered for low-slope applications, MaxMech200™ excels in high-wind and heavy-snow environments while offering a clean, modern appearance. Its robust design ensures long-lasting performance for commercial, industrial, and architectural projects where strength, flexibility, and aesthetics are essential.
PANEL SURFACE PROFILES

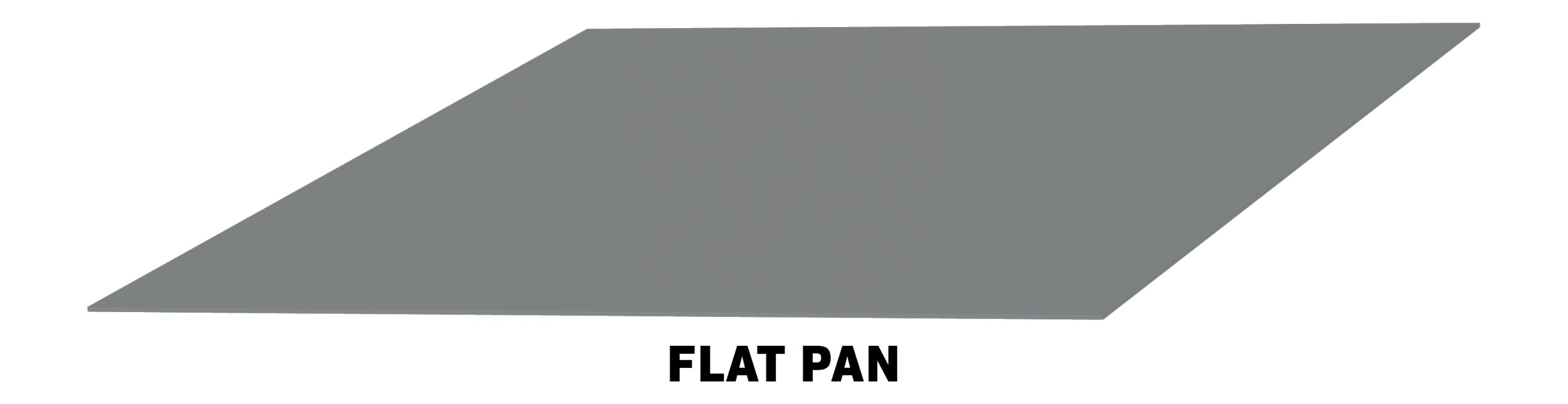

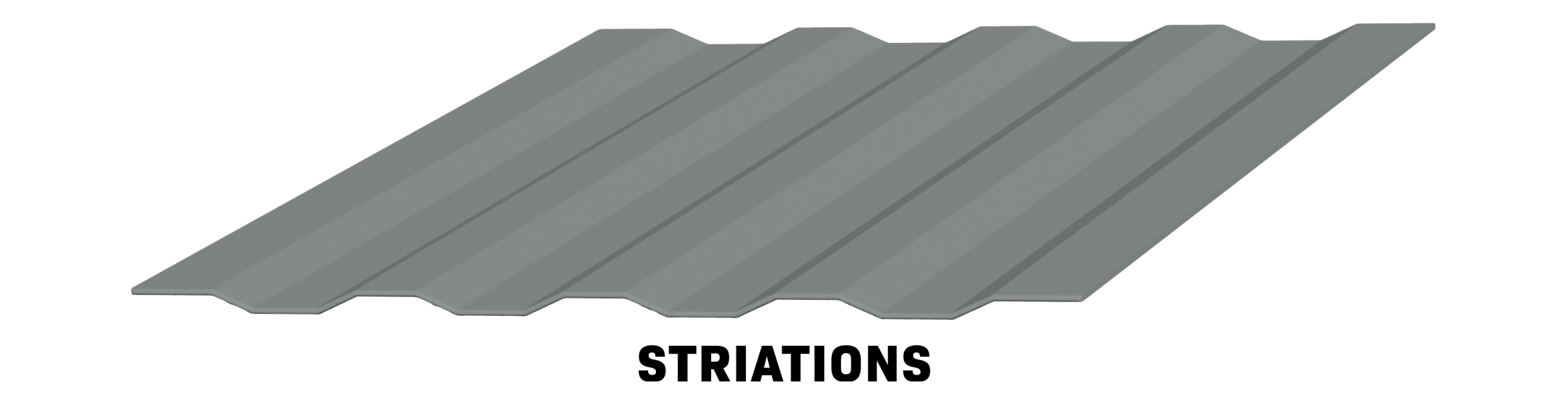

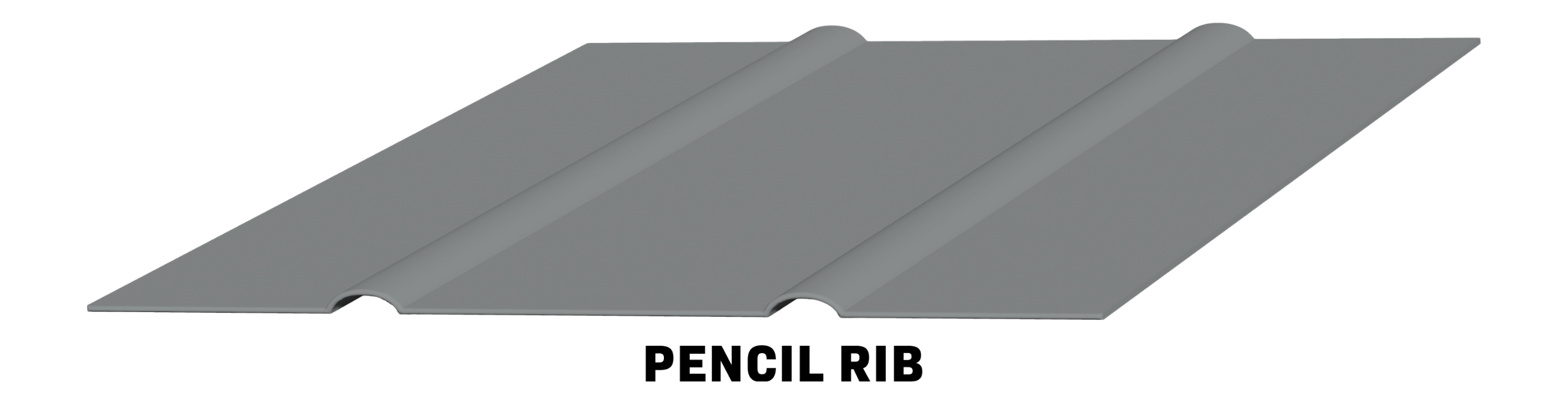

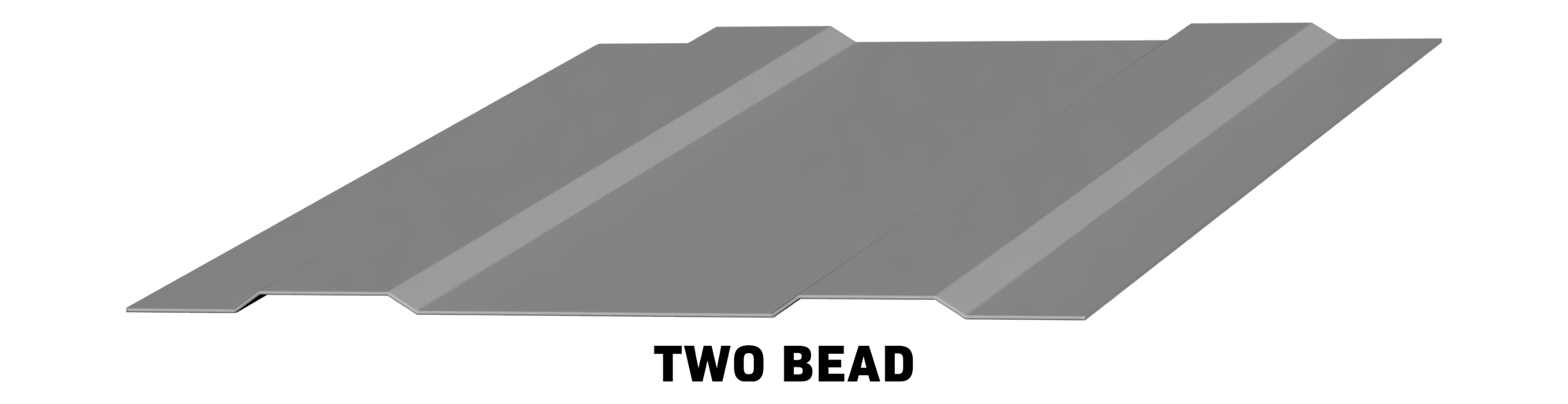

Our standing seam panels can be manufactured with a variety of surface profiles designed to improve panel rigidity and help prevent oil‑canning, the visible waviness that can appear in flat metal surfaces due to expansion, contraction, or installation stresses. Adding surface profiles introduces subtle breaks in the pan that diffuse light and reduce reflective distortion, creating a smoother, more consistent appearance across the roof or wall. For the greatest stability and the most effective oil‑canning prevention, striations are the preferred choice due to their high level of rigidity.
METAL ROOF
METALMAX STANDING SEAM PROJECT GALLERY
Having trouble visualizing how our Standing Seam panels would look on your building? Browse our Standing Seam project gallery and see how our MaxLoc100™ and MaxSeam175™ Panels have been used in the past.
Show More
Project Photos
