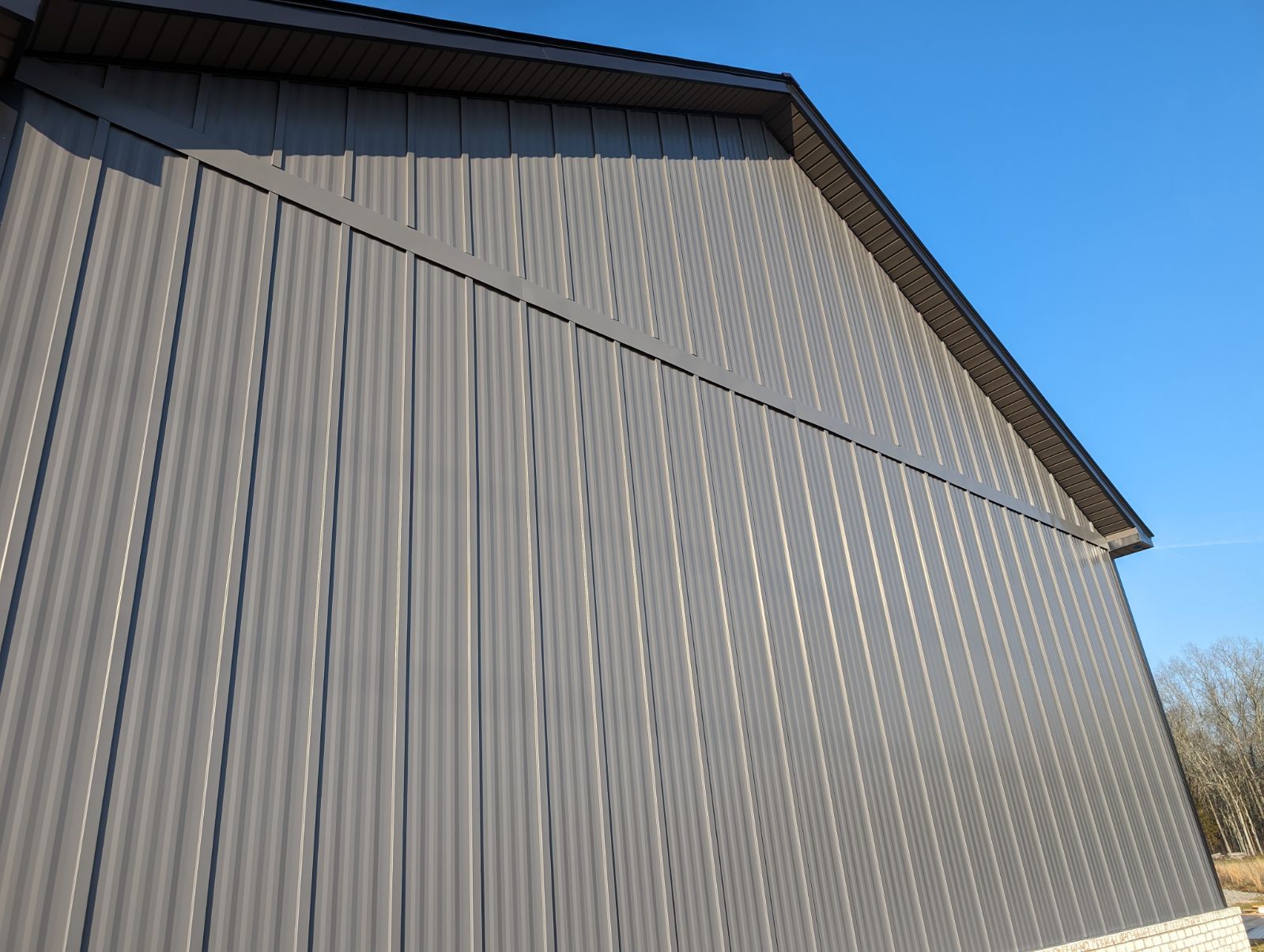

Panel close-ups

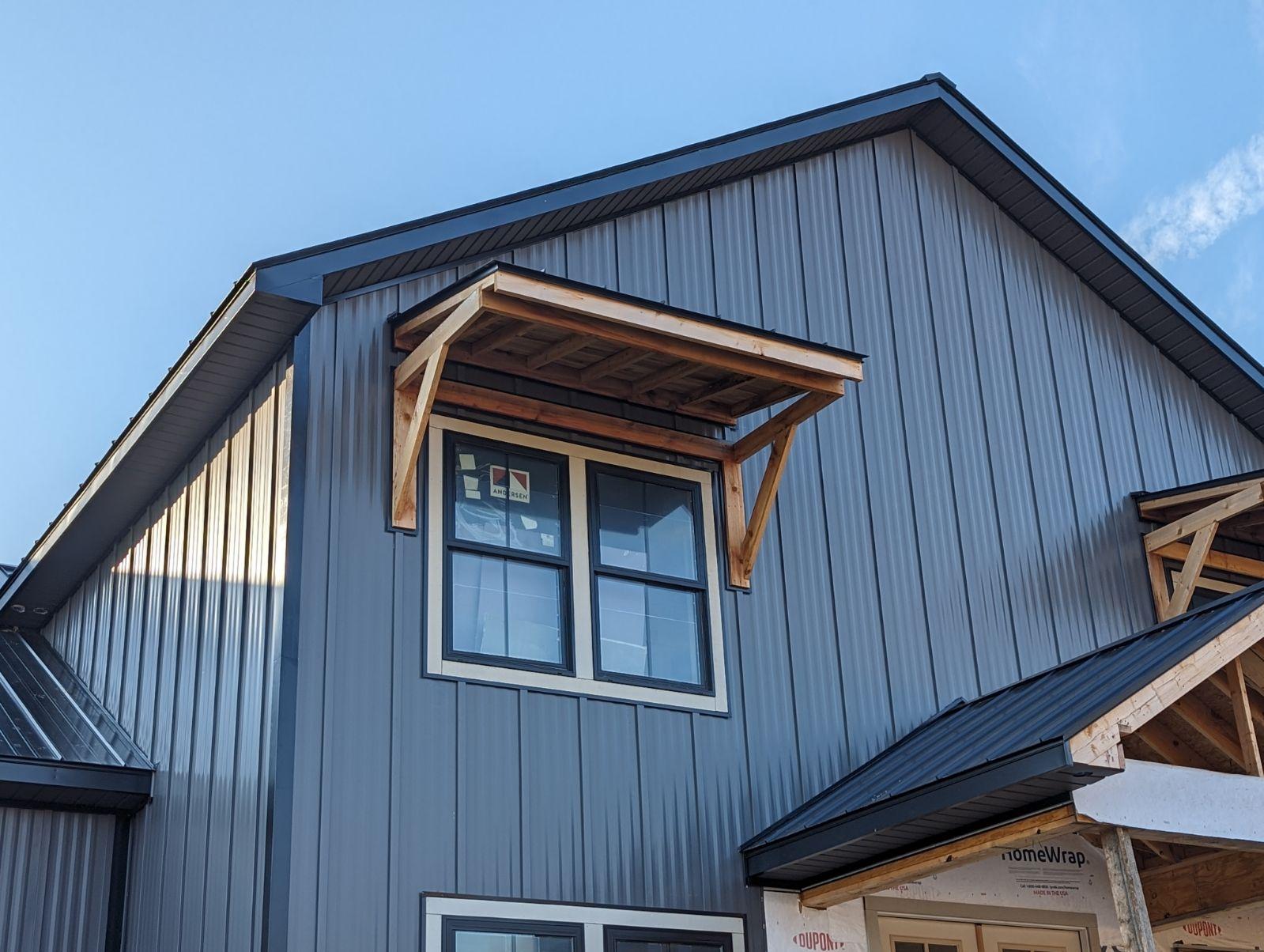

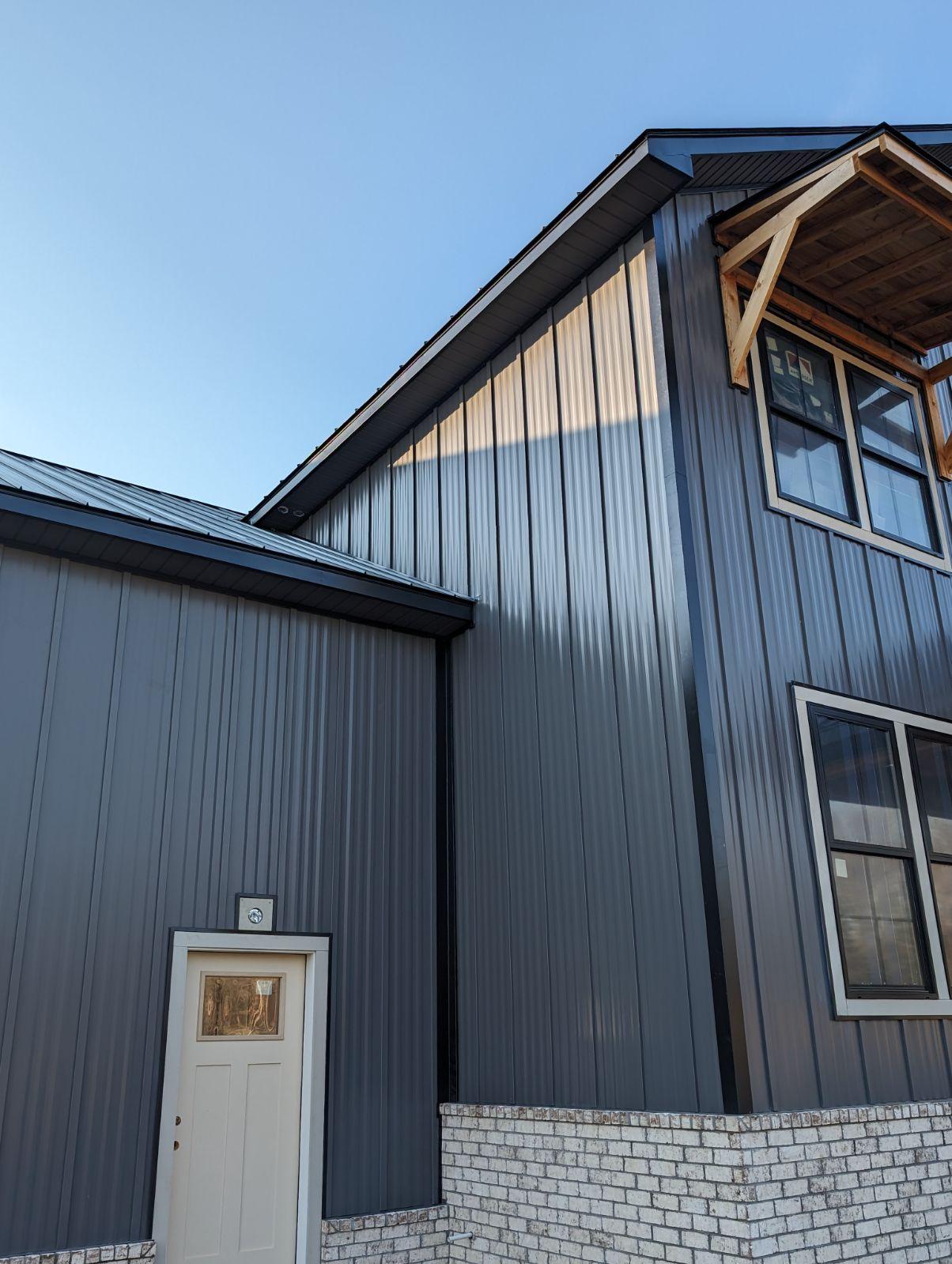

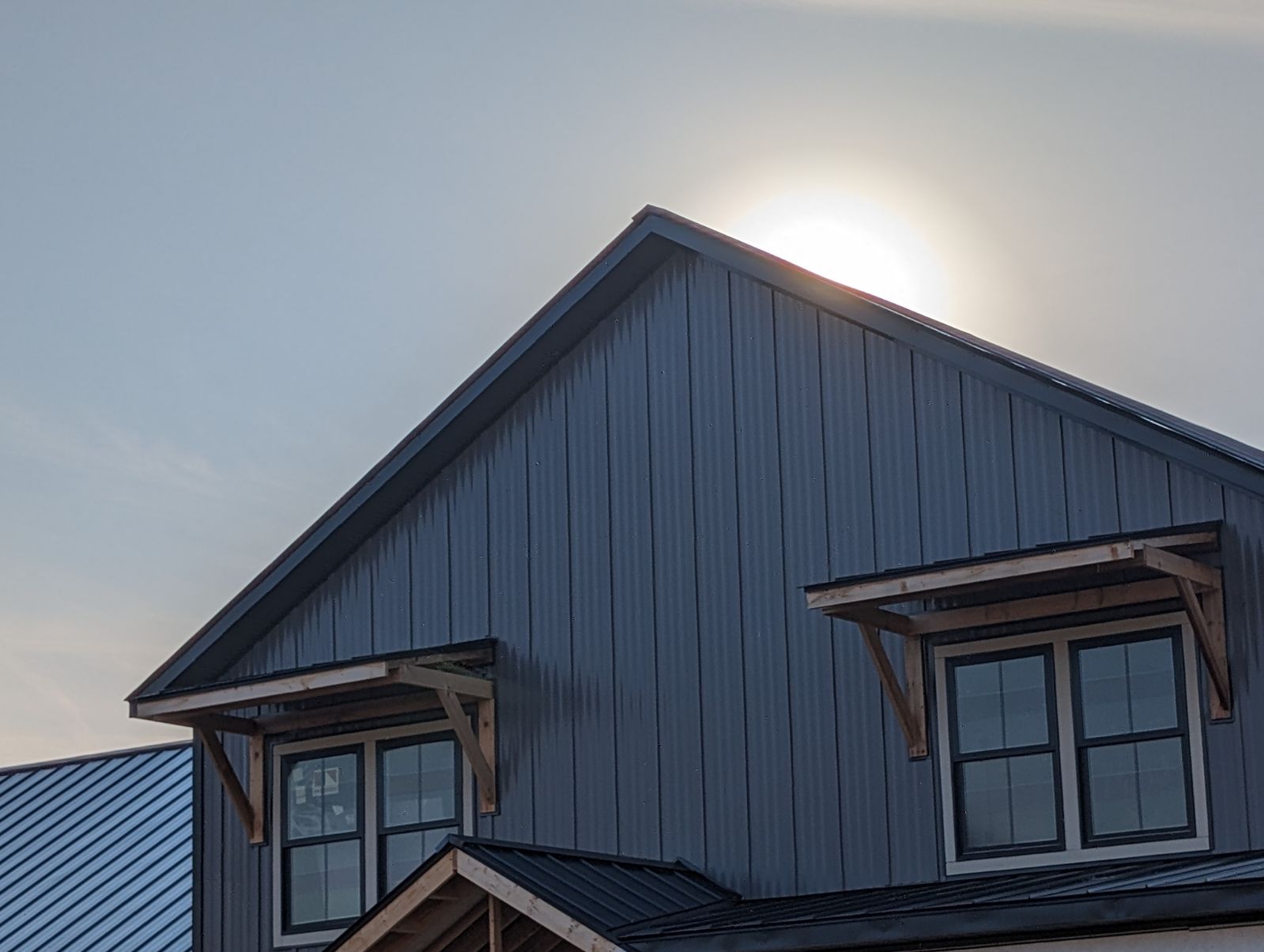

Thanks to the revitalization of the farmhouse style and its influence on modern home design, the look of Board & Batten siding has become increasingly popular.  It provides a look that has depth and texture and can easily be paired with other siding types (like brick) in different areas of a home’s exterior.

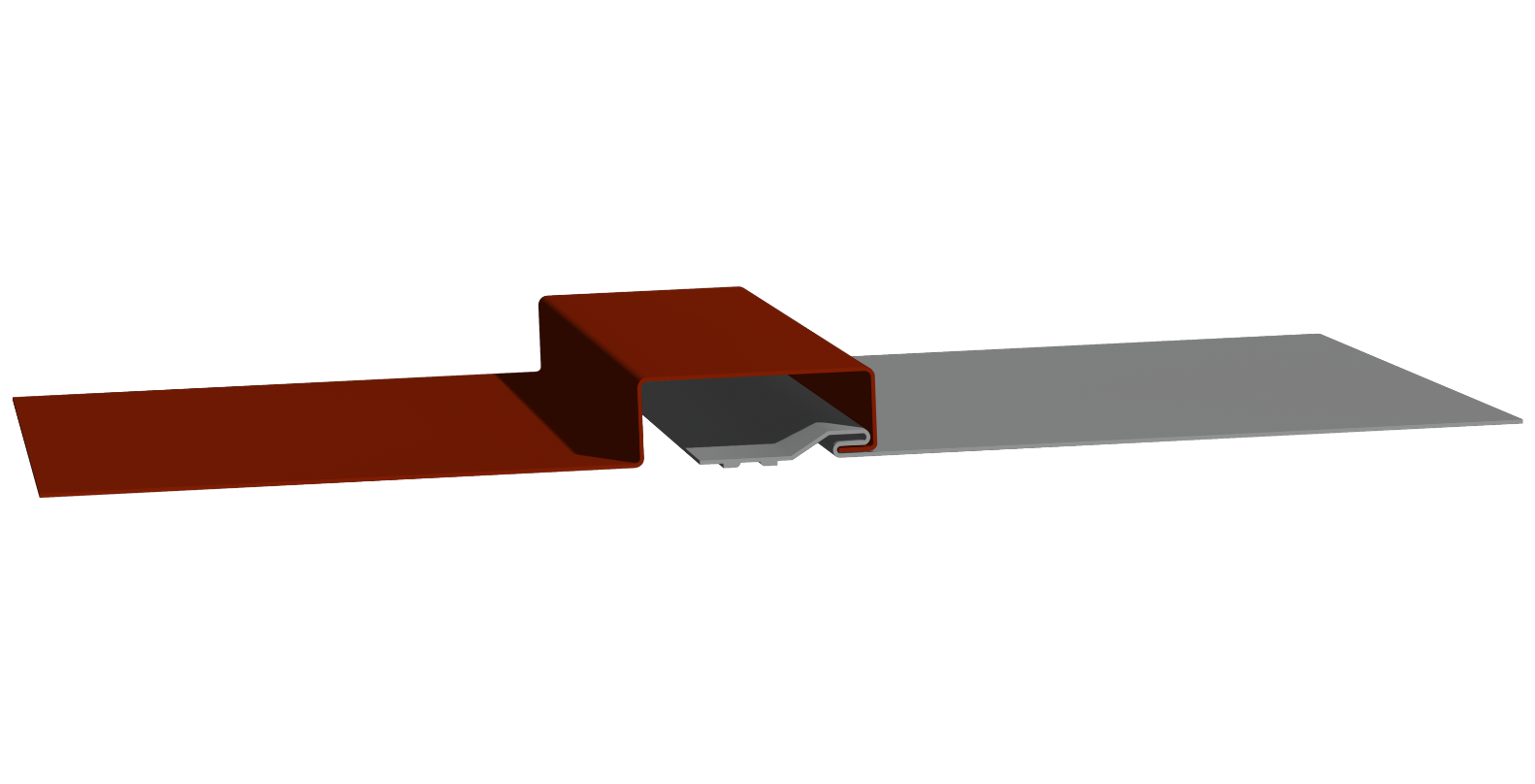

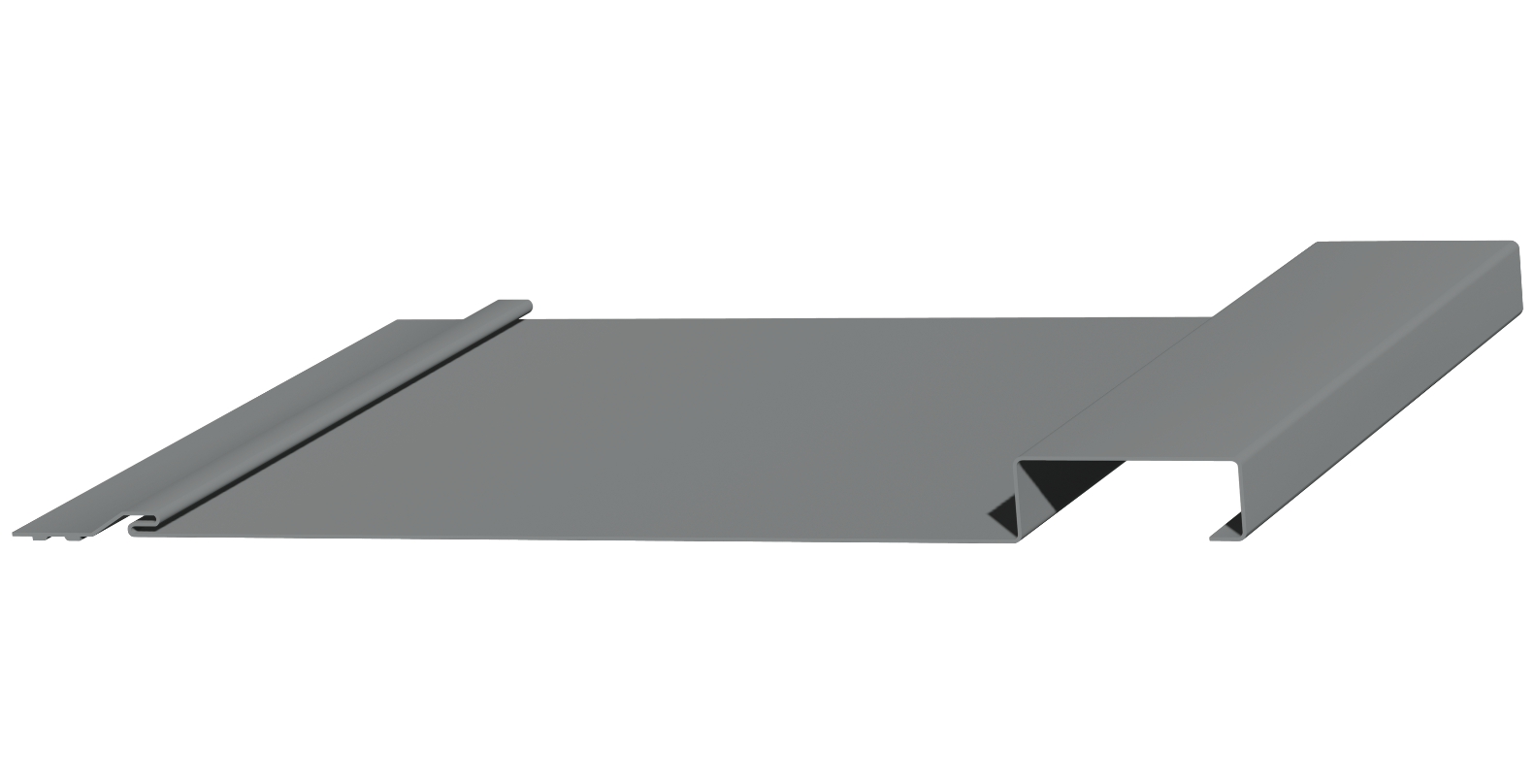

The Board and Batten panel from MetalMax offers homeowners a sophisticated appearance along with the easy installation and low-maintenance quality of a metal siding product.  These interlocking panels have a 16 inch coverage width and are attached with concealed fasteners that are hidden by the raised battens to ensure a clean look once the job is complete.

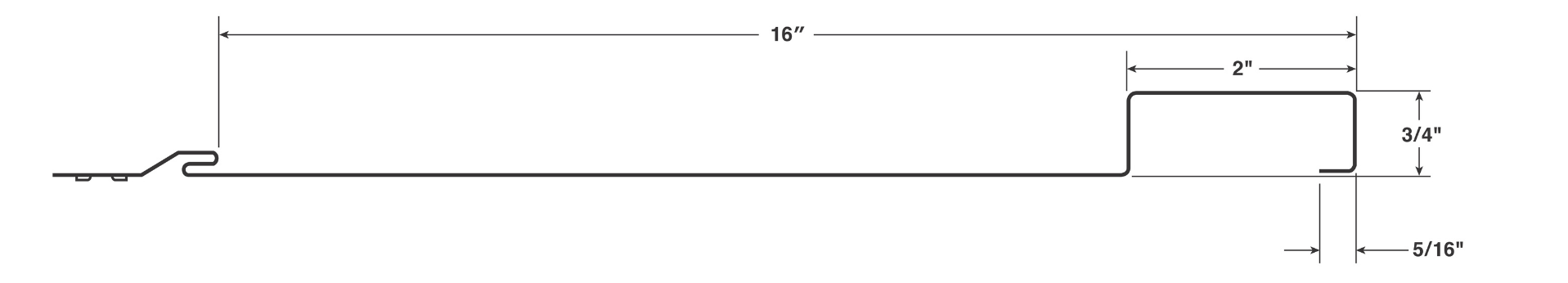

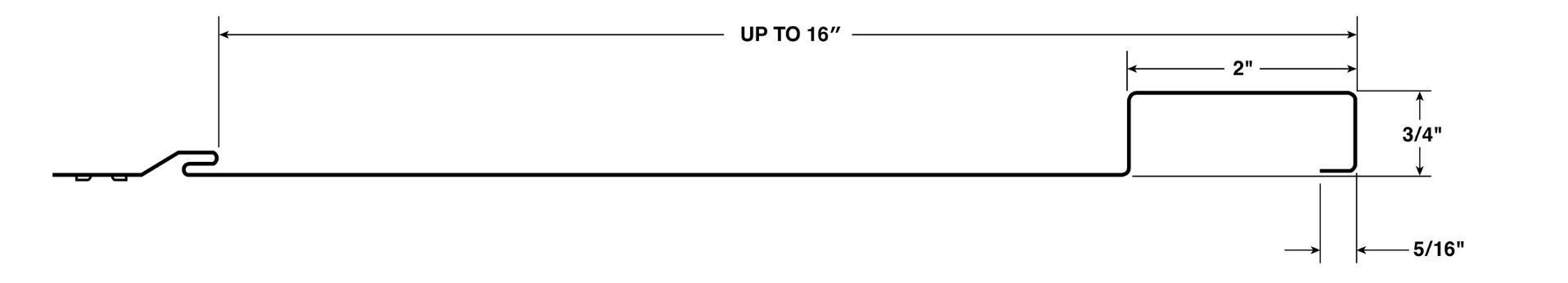

  • Coverage Width = 16″
  • Major Rib Spacing = 10″ – 25¼”
  • Rib Height = ¾”
  • Rib Shape = Standing Seam
  • Available Gauges = 26ga – 24ga
  • Material = Galvalume® Coated Steel
  • Installation Substrates = Solid Substrate Only
  • Fasteners = Concealed
  • Color Finish = Sherwin Williams Weather XL
  • Available Colors (shown as clickable swatches):      Polar White, Ash Gray, Charcoal, Black, Light Stone, Tan, Brown, Burnished Slate, Galvalume, Copper, Brite Red, Rustic Red, Ocean Blue, Gallery Blue, Hunter Green, Fern Green, plus other custom colors can be ordered with sufficient lead-time
