MAXPANEL

FREE Estimate
Visualize It!
Panel Details
Certifications
Trim Profiles
Installation Guide

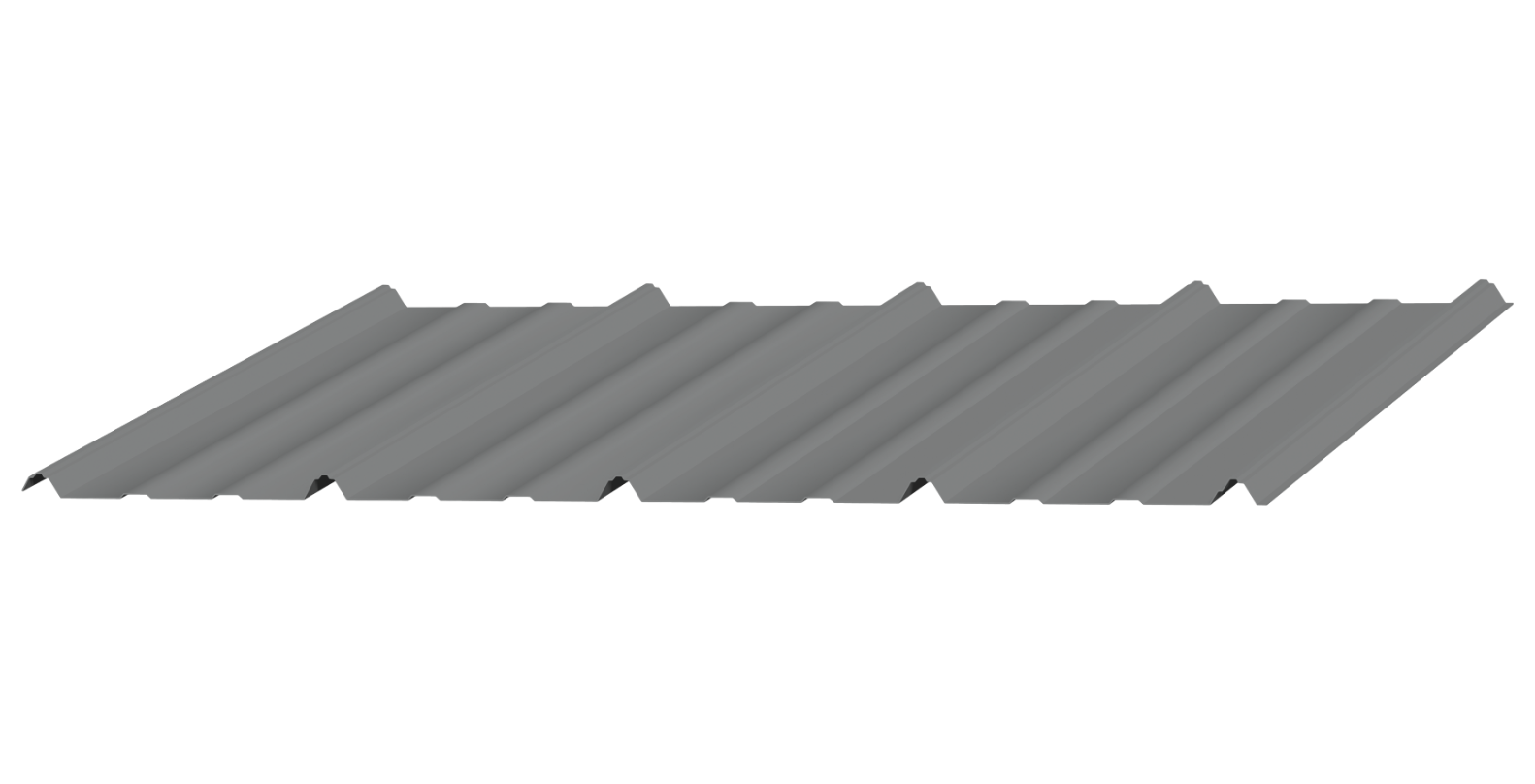

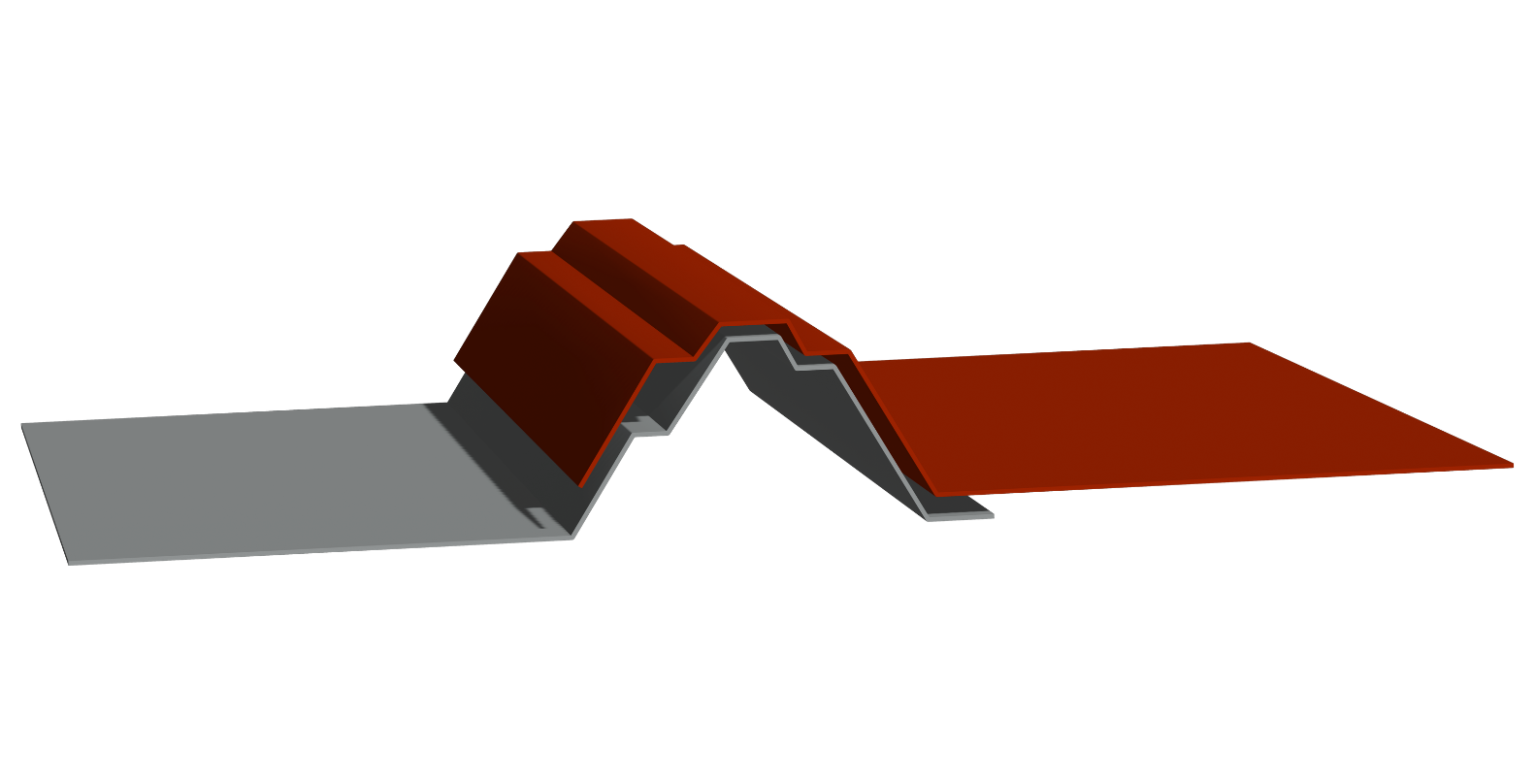

Panel close-ups

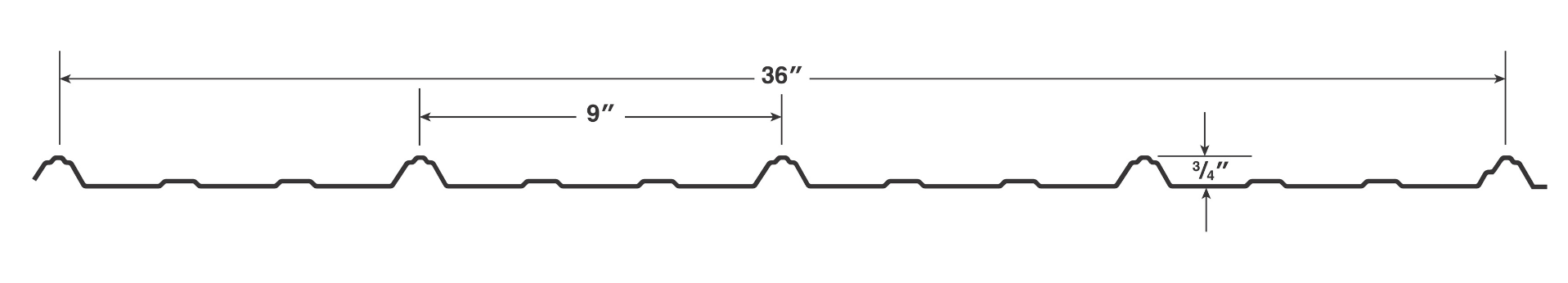

The MetalMax MaxPanel is a through fastened panel and is our most universal and economical panel that is best suited for residential or agricultural projects.  It is a basic screw-down panel that can be applied over open framing or on a solid substrate.

  • Coverage Width = 36″
  • Major Rib Width = 9″ On Center
  • Major Rib Height = ¾”
  • Available Gauges = 29, 26
  • Material = Galvalume® Coated Steel
  • Installation Substrates = Open Framing or Solid Substrate
  • Fasteners = Exposed
  • Color / Finish = Sherwin Williams Weather XL

* Panel lead times may vary per location. Please reach out to your nearest MetalMax location for full availability details.

26 GAUGE SMP COLORS (DOWNLOAD COLOR CHART)

29 GAUGE SMP COLORS (DOWNLOAD COLOR CHART)

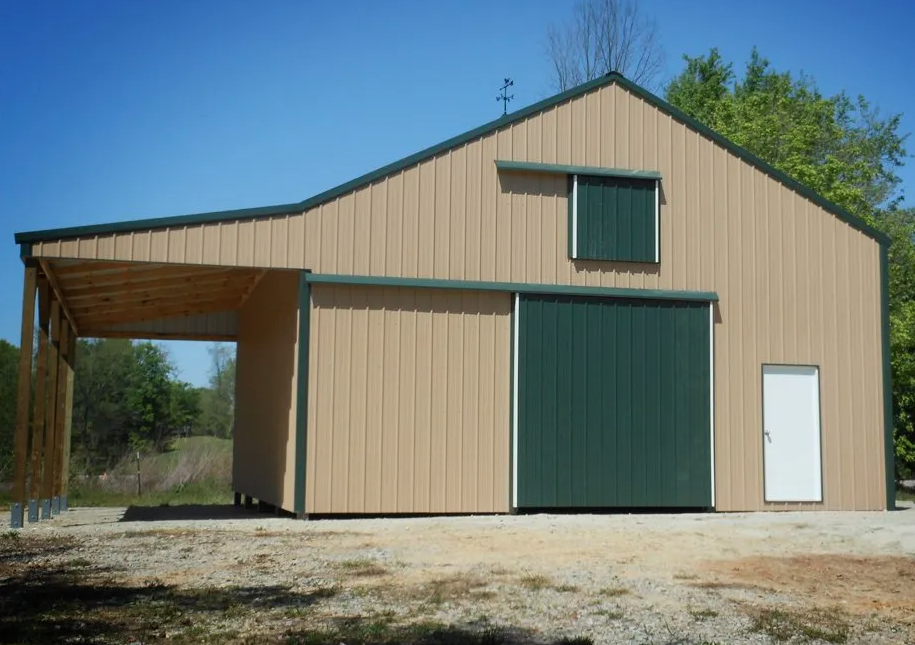

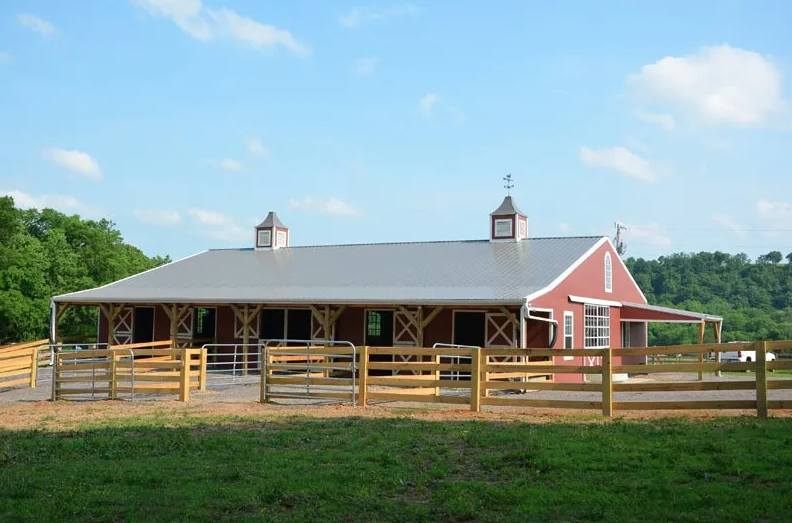

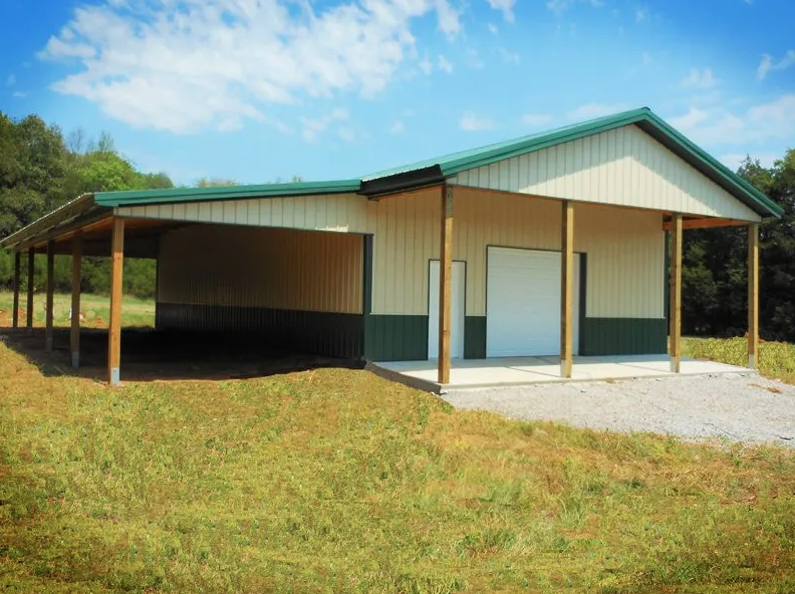

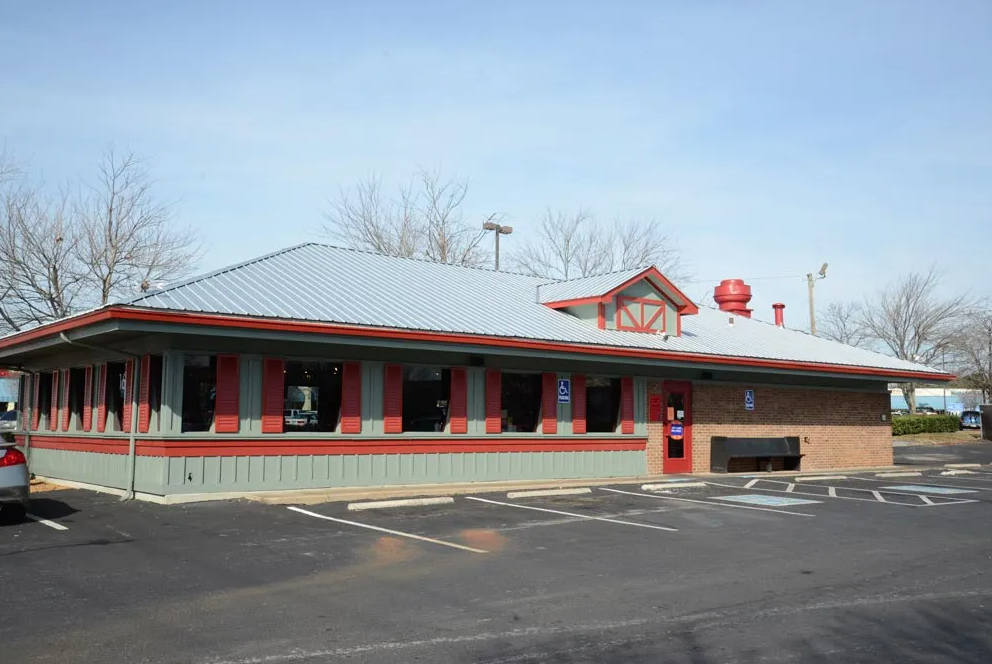

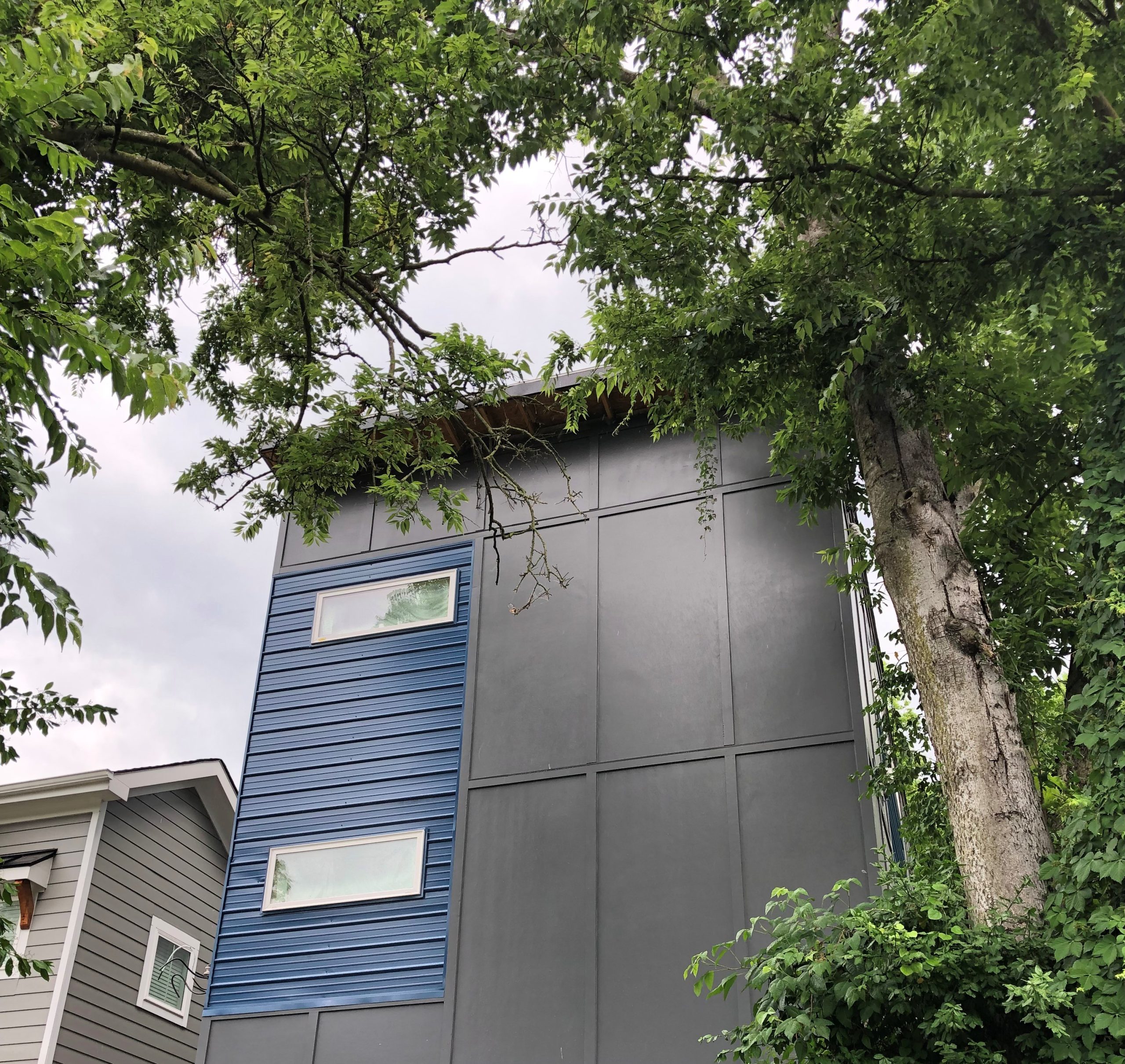

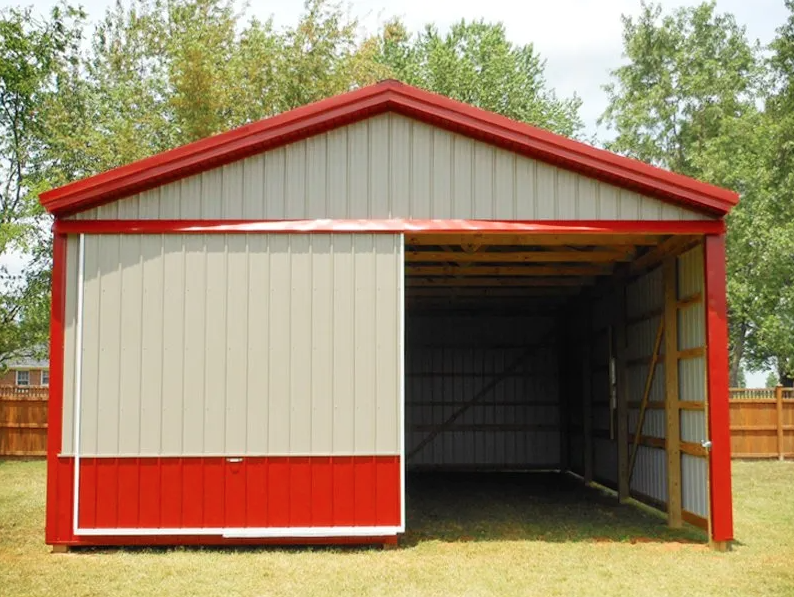

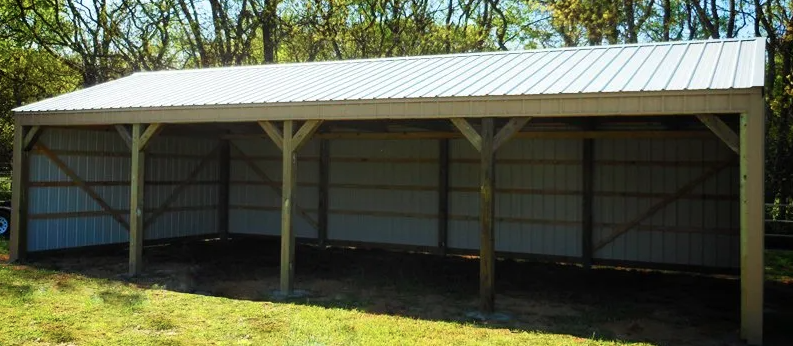

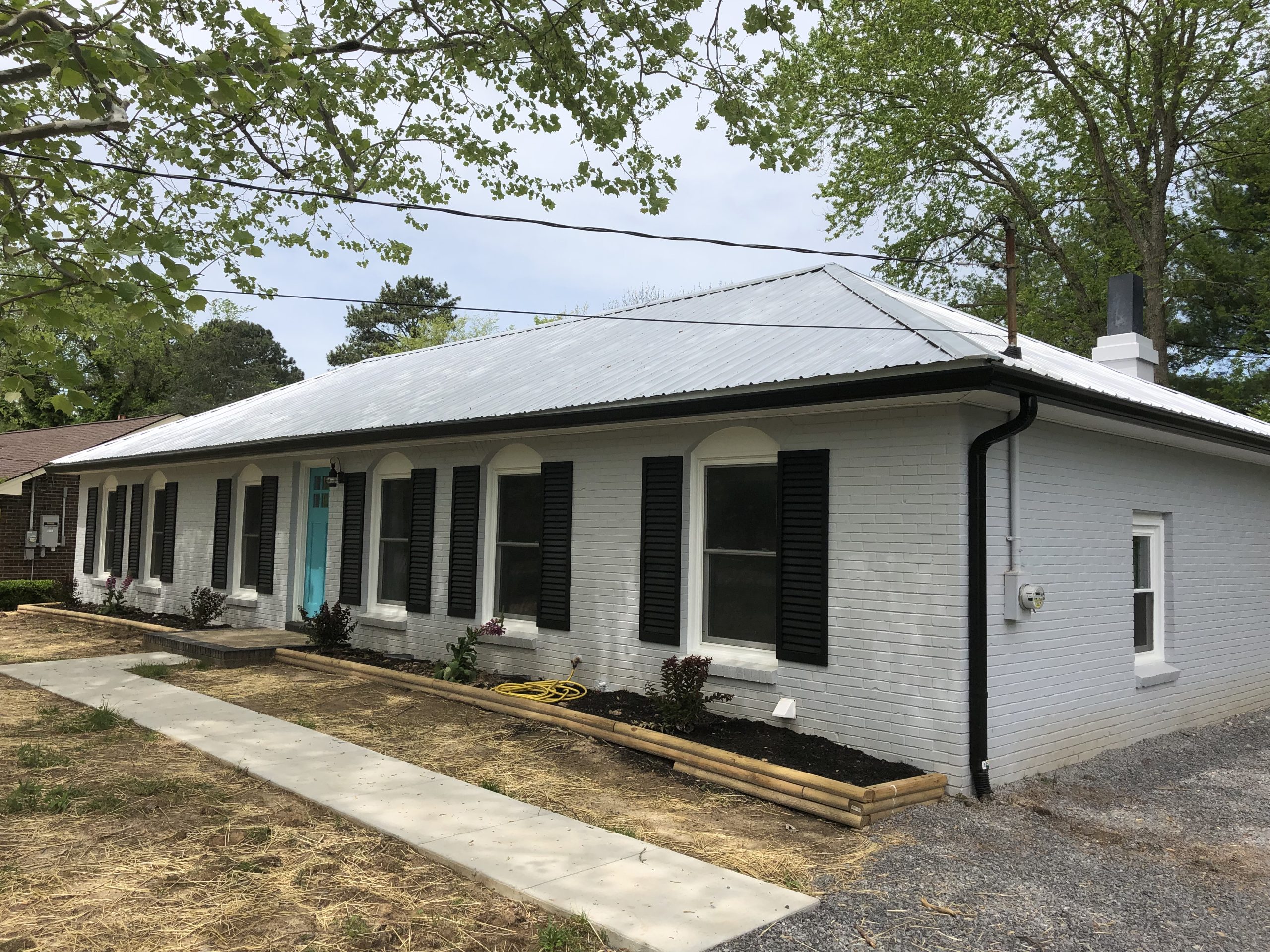

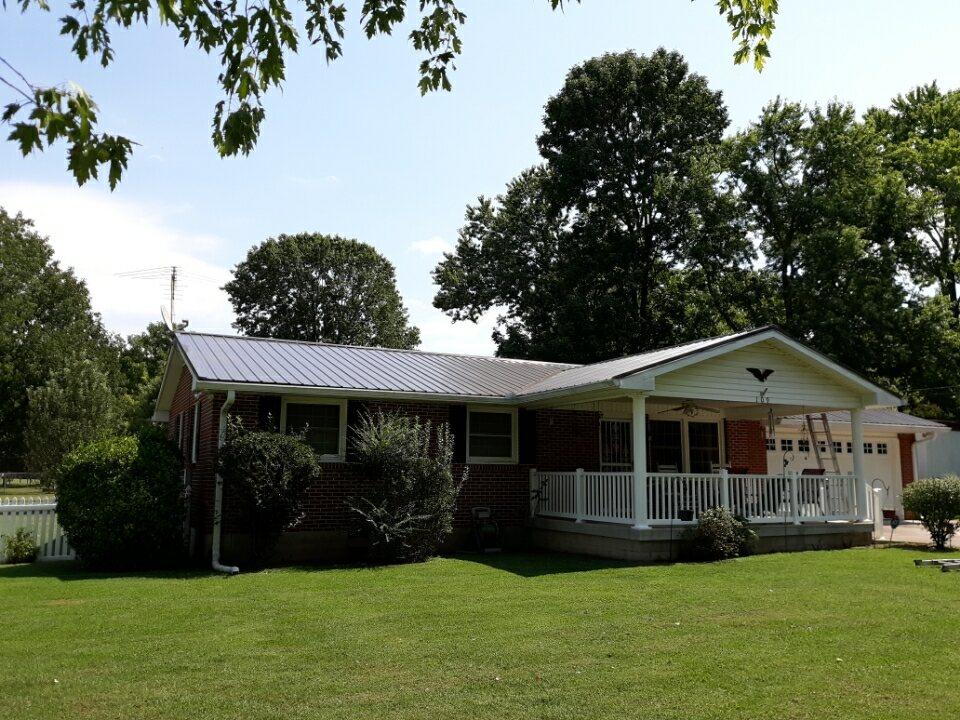

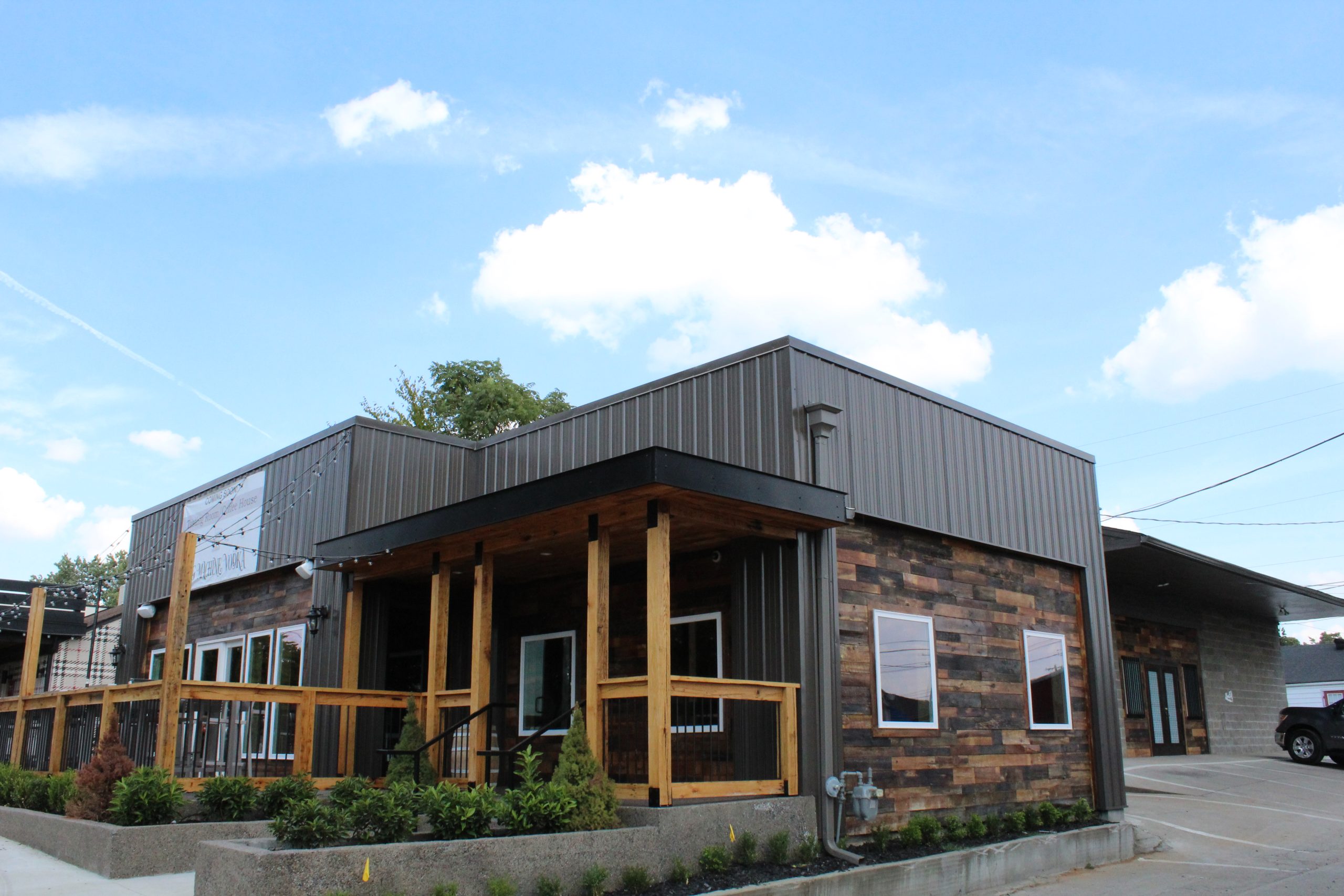

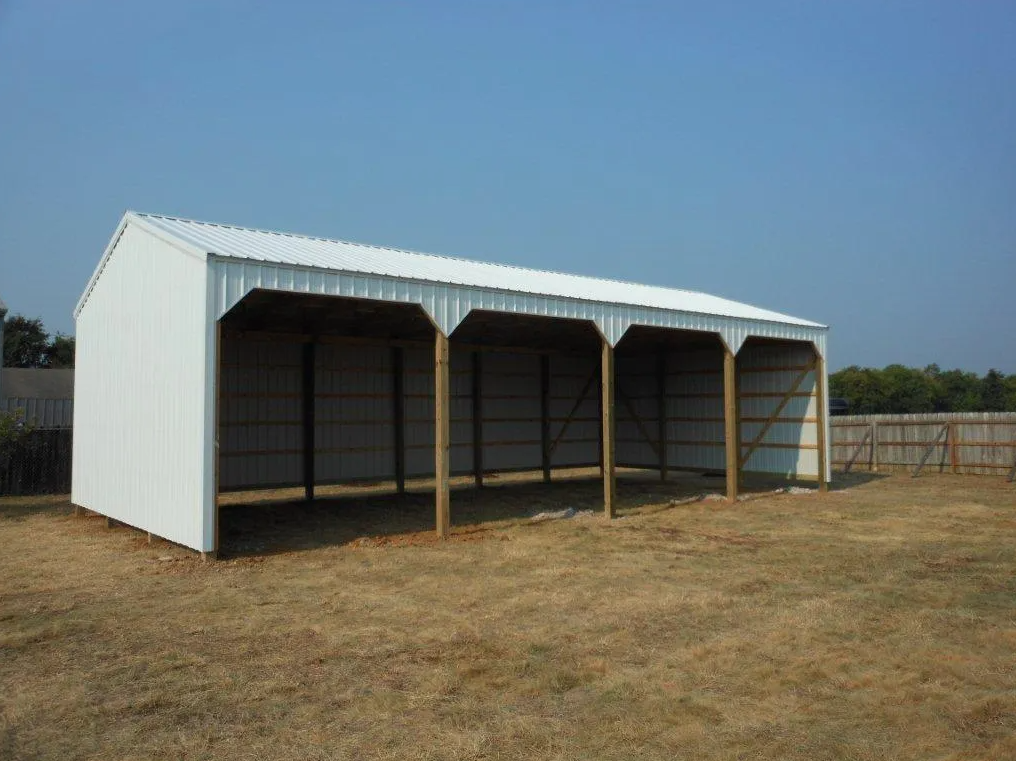

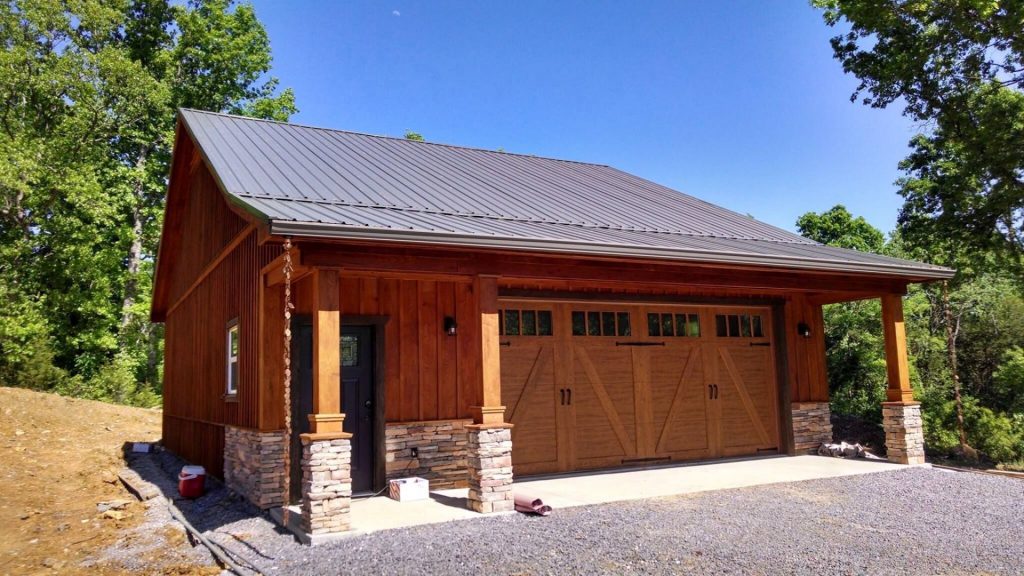

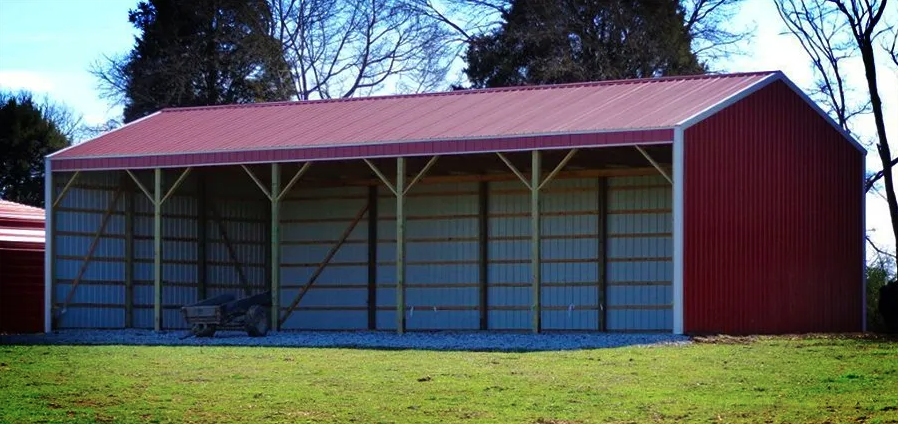

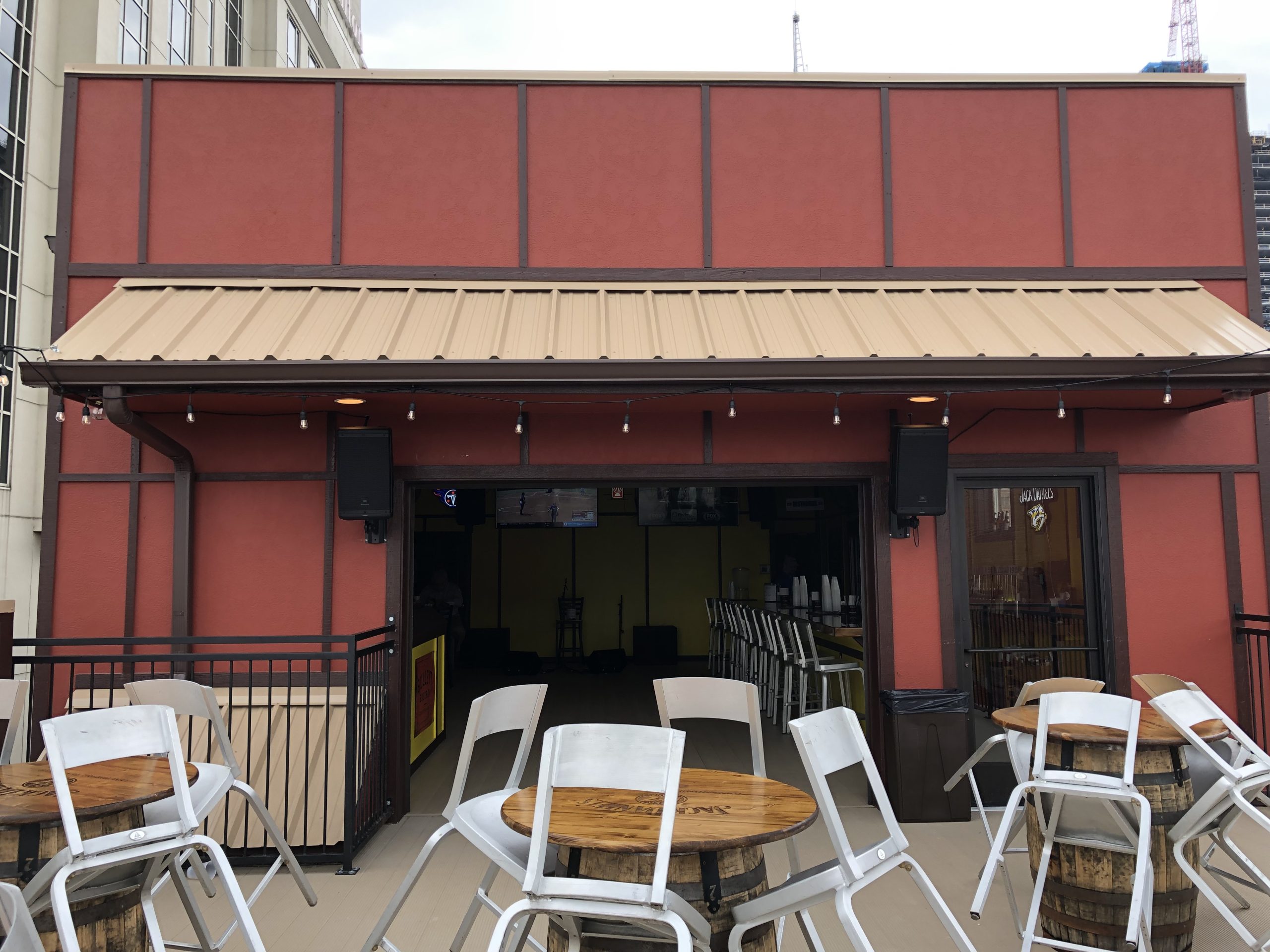

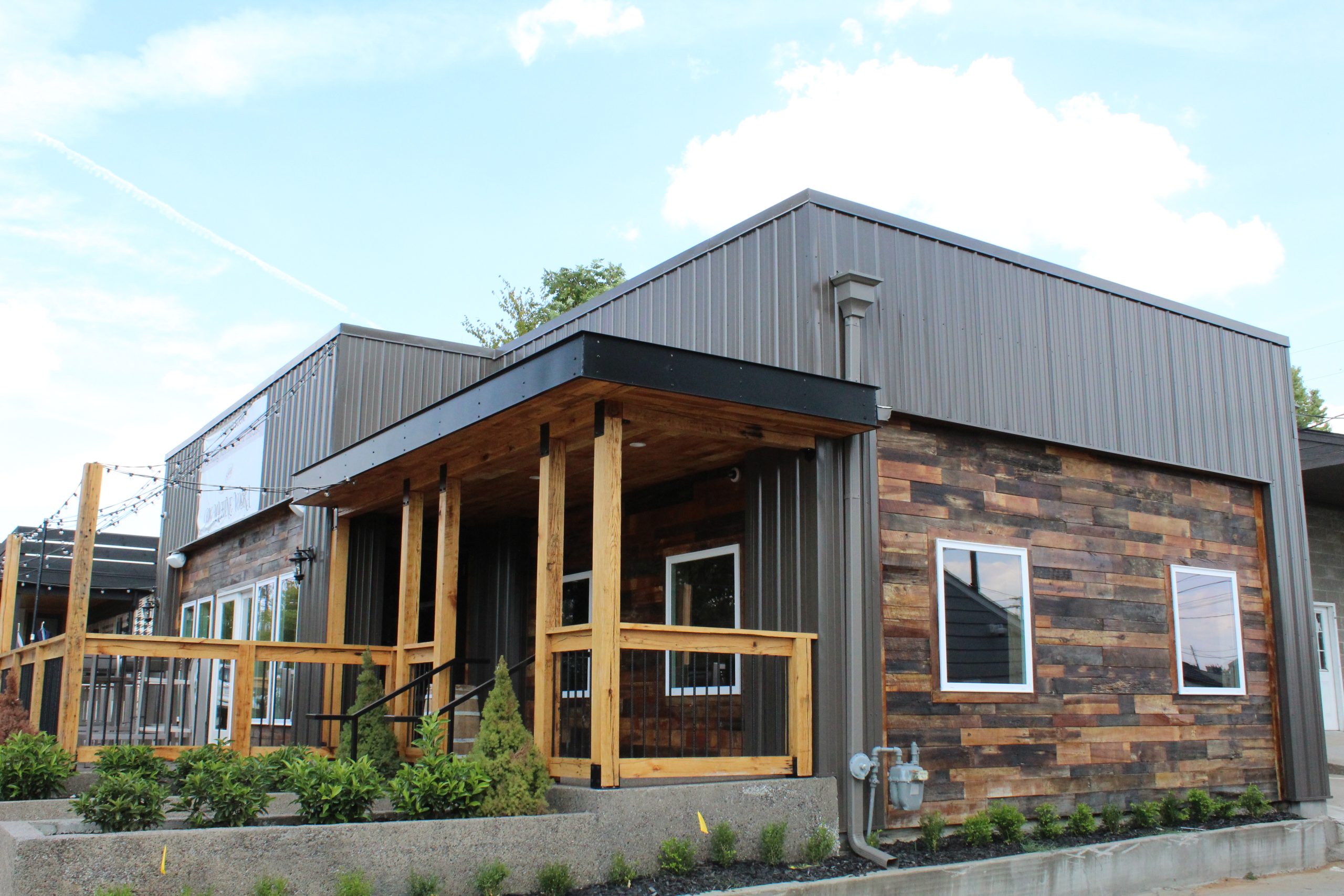

GALLERY
