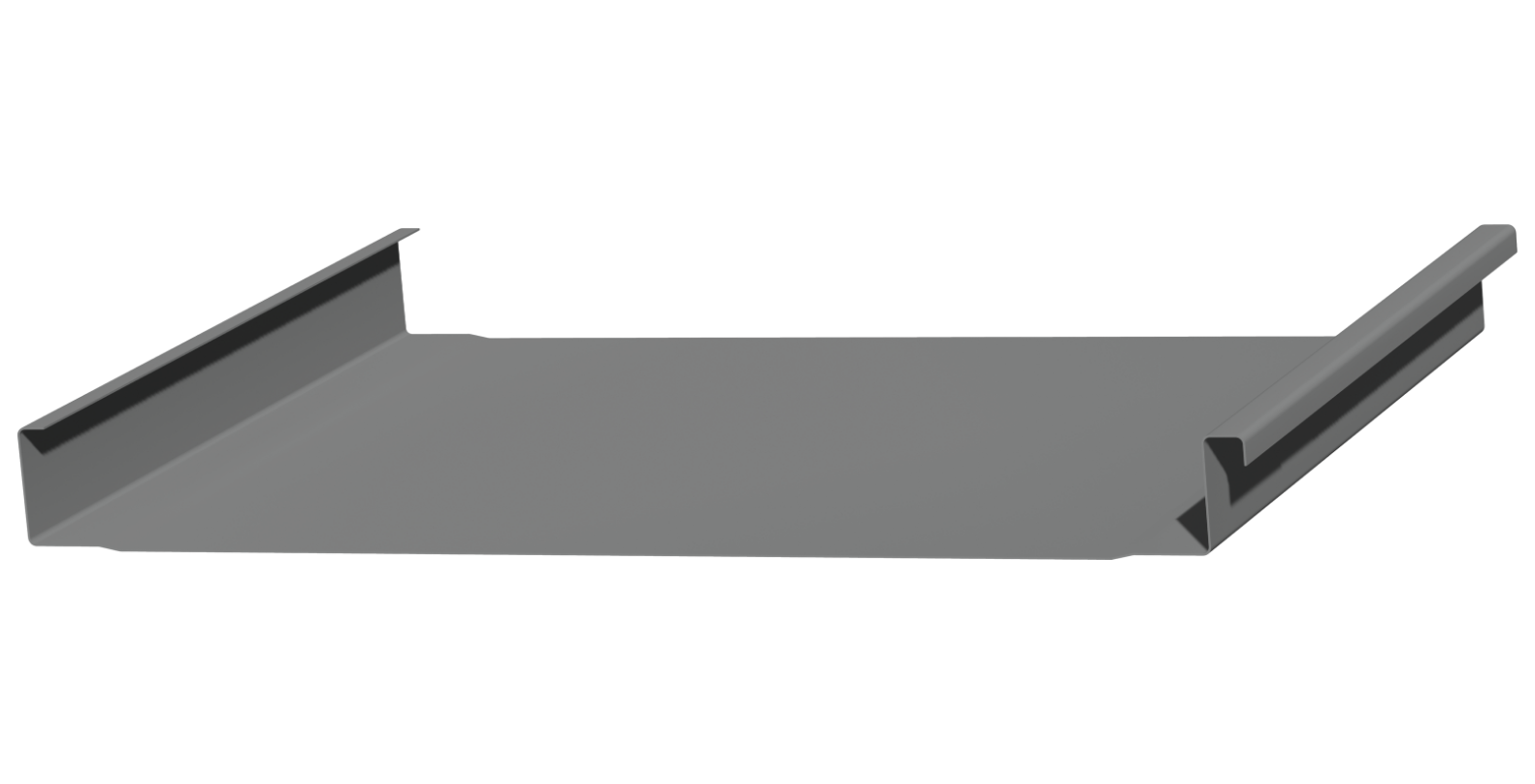

MAXMECH150™ PANELS

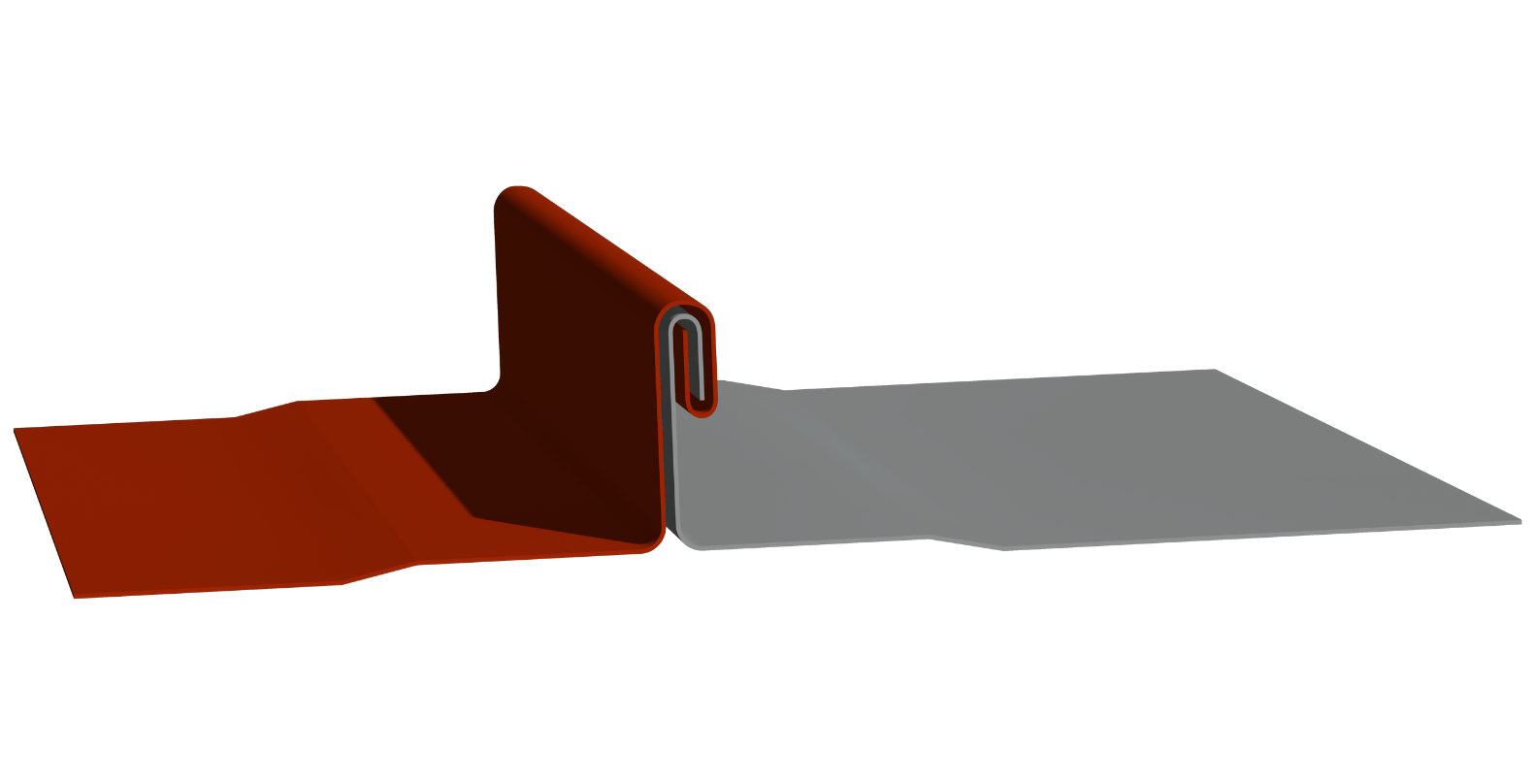

The MaxMech150™ Panel is a mechanical seam standing seam system offering superior weather resistance and long-term durability. Its double-lock design allows thermal movement while maintaining strength, making it ideal for commercial, industrial, and high-end architectural projects.

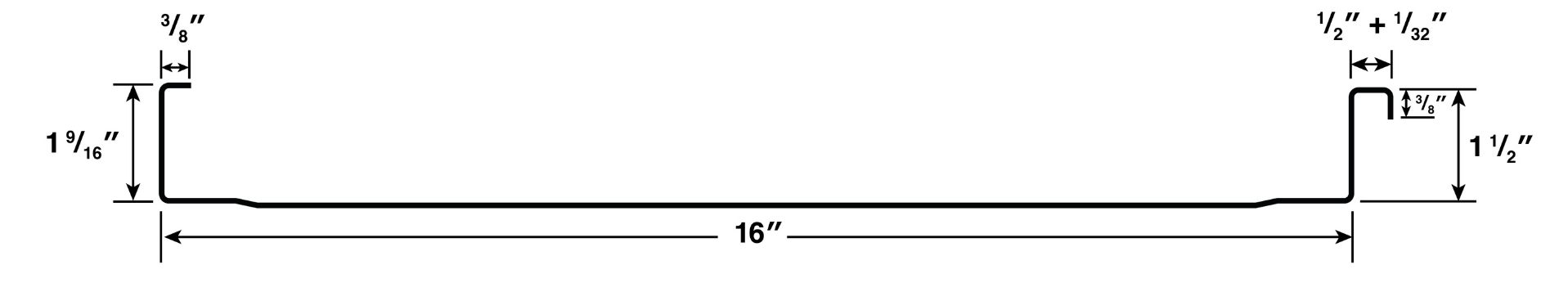

- Coverage Width = 16”
- Rib Height = 1 ½”
- Rib Shape = Standing Seam
- Material = Galvalume® Coated Steel / Aluminum
- Available Gauges = 24, 22 / .032″, .040″
- Installation Substrates = Solid Substrate Only
- Fasteners = Concealed Fastener Clip
- Color / Finish = AC Galvalume, PVDF™
PANEL SURFACE PROFILES
Our standing seam panels can be manufactured with a variety of surface profiles designed to improve panel rigidity and help prevent oil‑canning, the visible waviness that can appear in flat metal surfaces due to expansion, contraction, or installation stresses. Adding surface profiles introduces subtle breaks in the pan that diffuse light and reduce reflective distortion, creating a smoother, more consistent appearance across the roof or wall. For the greatest stability and the most effective oil‑canning prevention, striations are the preferred choice due to their high level of rigidity.
24 GAUGE COLORS
22 GAUGE COLORS
.032″ ALUMINUM COLORS
.040″ ALUMINUM COLORS
