BUILDING ACCESSORIES
MetalMax carries critical building supplies including windows, walk-in doors, roll-up doors, sliding door accessories, post brackets and polycarbonate skylight panels that allow natural light into a non-insulated structure like a warehouse or barn. MetalMax offers a variety of walk doors and door accessories. Select trim can also be used to create a custom designed door. To make sure you have everything you need, we also supply all fasteners, rollers, pulls, brackets, and more. Contact us for more details on what regions offer which styles.

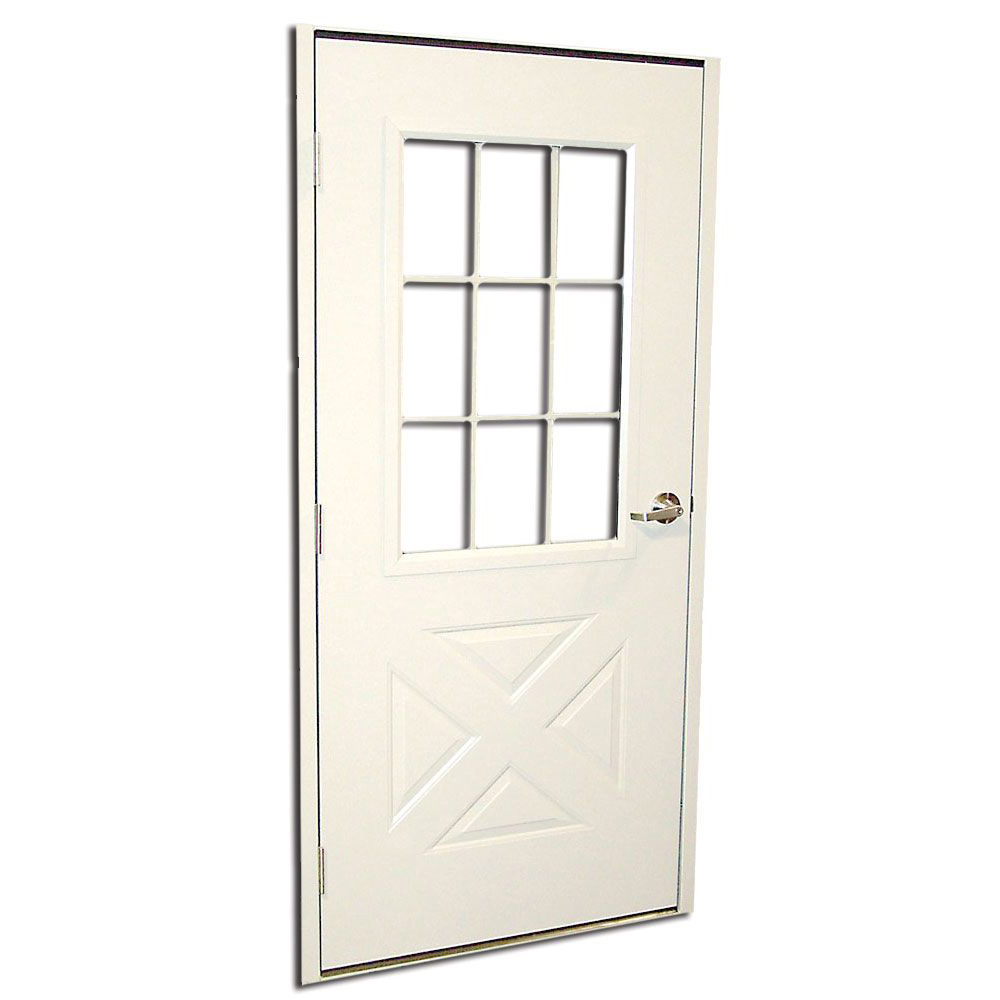

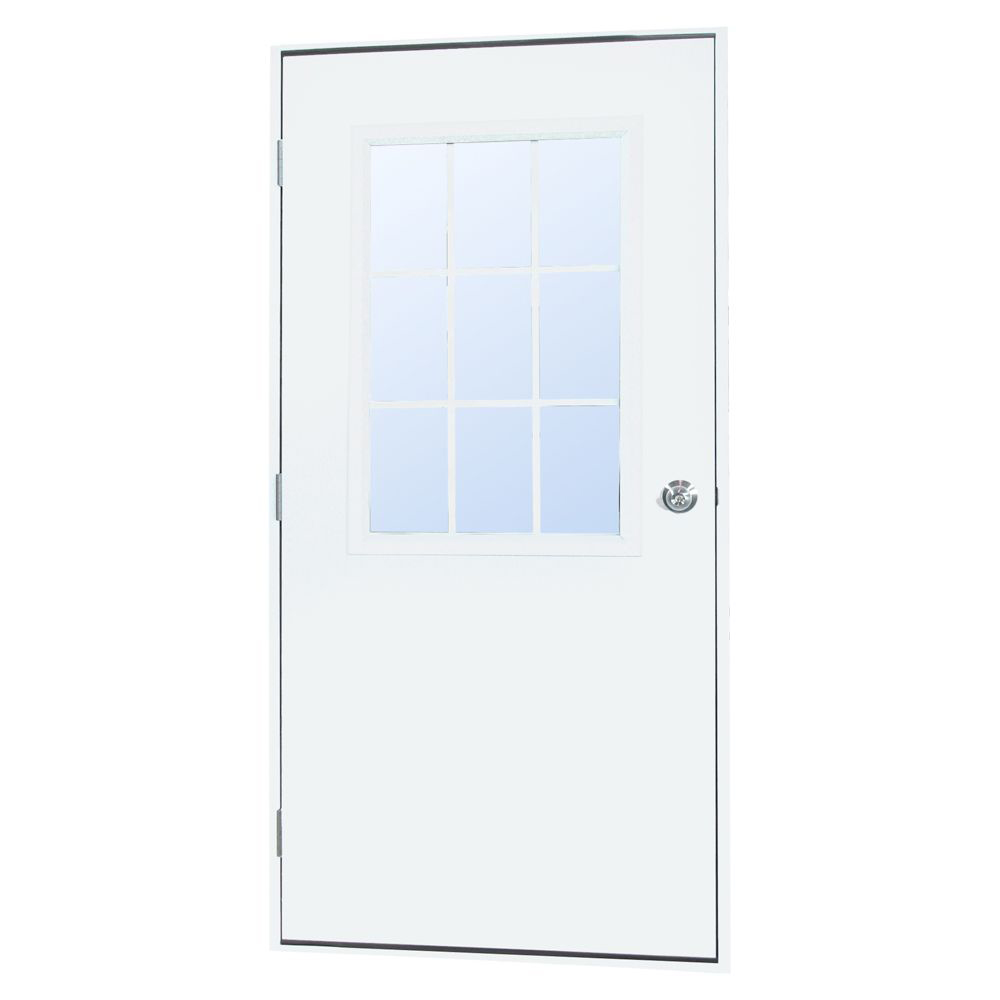

Insulated Walk-in Door
- General Construction Door
- Full rolled edge 24-gauge steel panel, 1 3/4″ thick
- Universal swing feature
- Four different styles of thresholds available: Inswing, Universal, ADA and Outswing

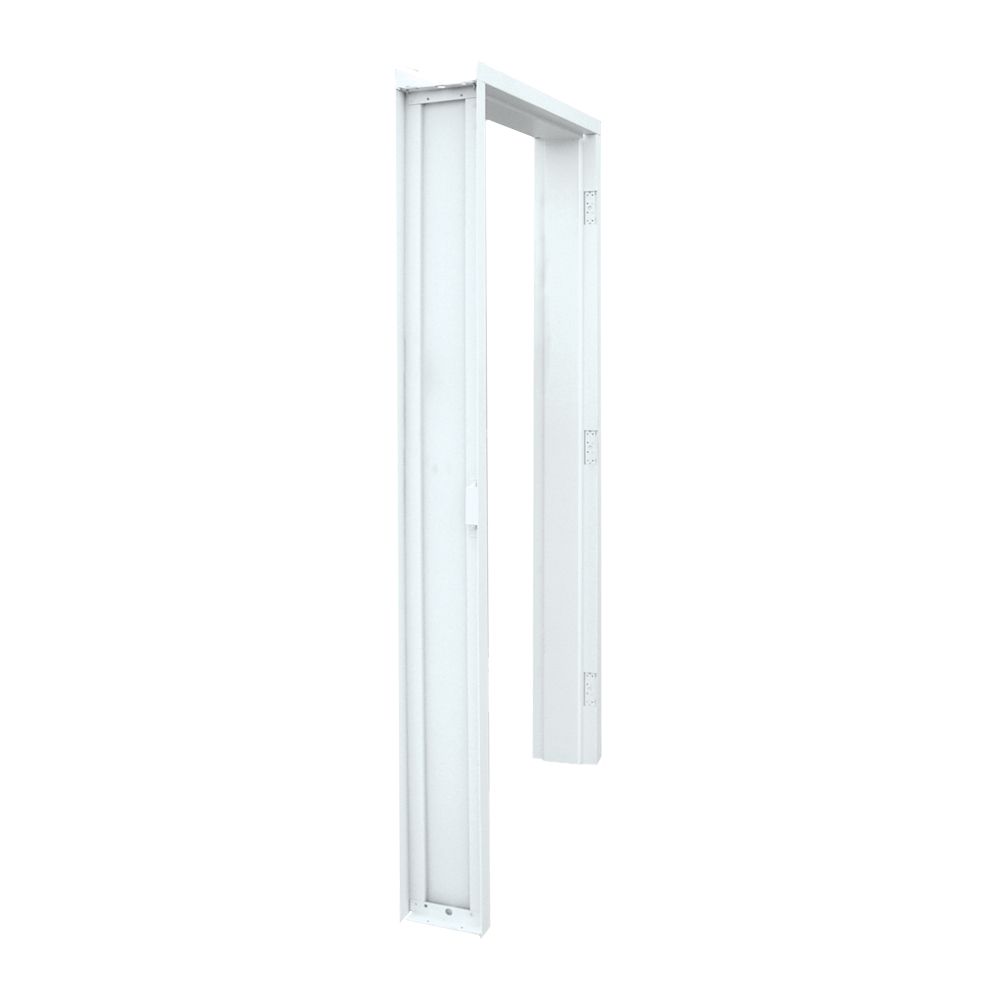

- Fully reversible in the 3 1/2″ thick jamb
- 24-gauge galvanized steel panel
- Insulated Panel – R-13
- 16-gauge jamb and panel are galvanized steel
- Quality double contact weather stripping on jamb
- Bulb and 3-fin top and bottom weather seals
- Jamb is tooled for hinge and strike mortise, and all jamb mounting holes are counter sunk to allow smooth surface installation
3-Hour Fire Rated Door
- Easy Installation
- 20 Gauge Door Panels
- 1 3/4″ Thick Doors
- 16 Gauge Steel Frame

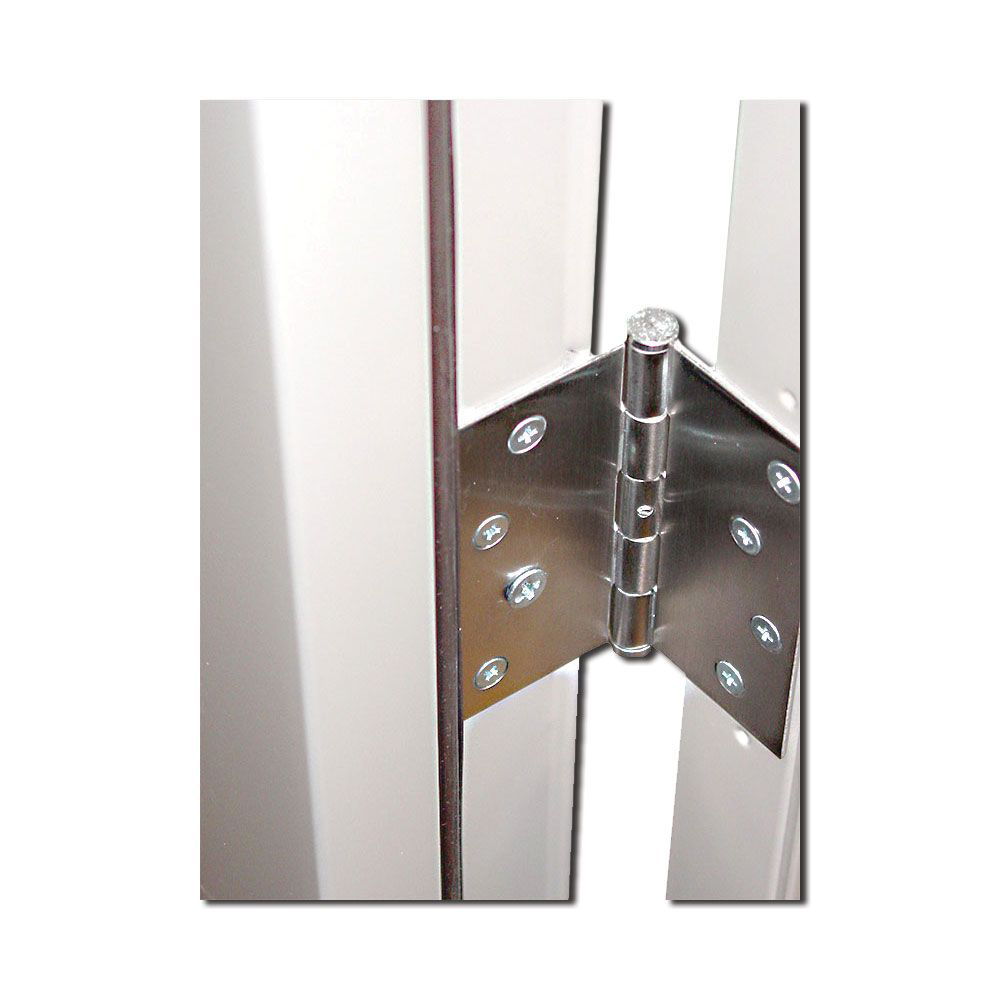

- (3) 4 1/2″ x 4 1/2″ x .134 mortised hinge preps

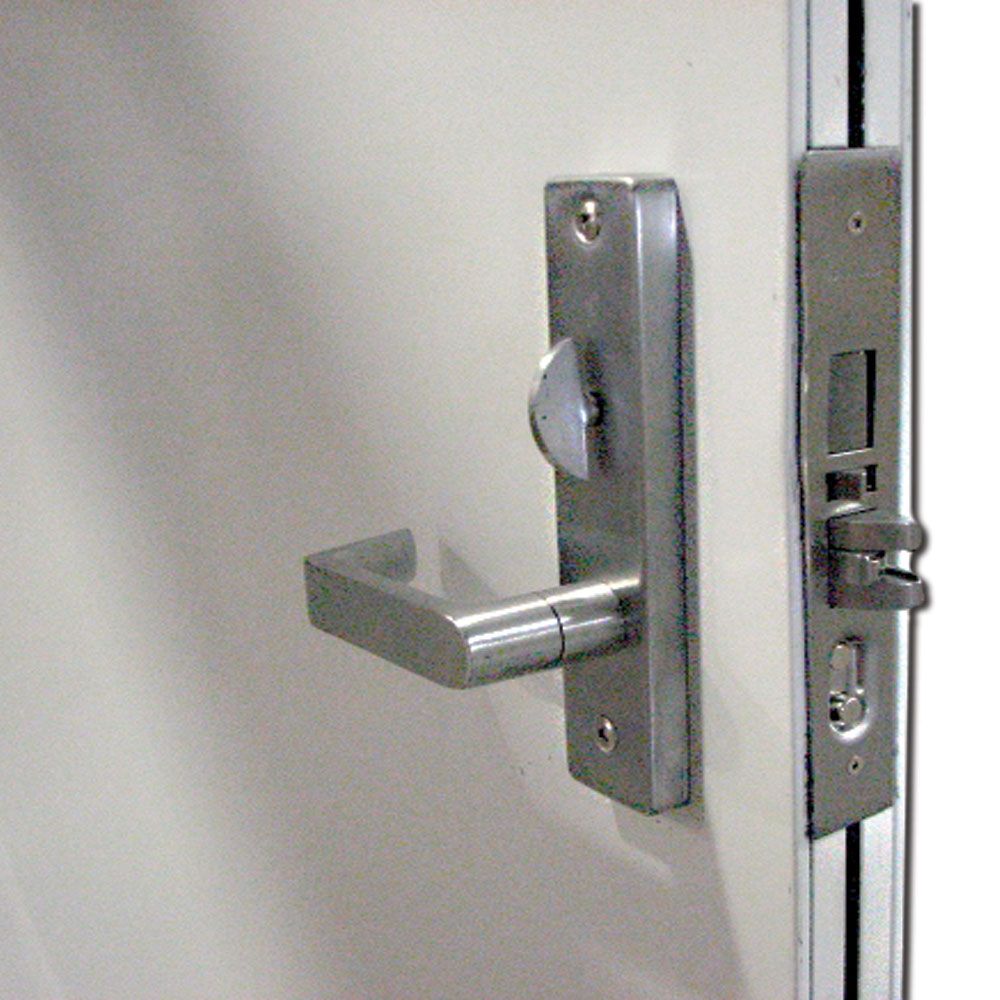

- ANSI A115.2 bored lock prep cylinder lock (Lock not included)
- Fully reversible – Hinge locations are symmetrical
- Closer reinforcement standard
- Pre-painted white prime finish
- 10-gauge hinge reinforcement
- 12-gauge closer reinforcement
- 14-gauge hardware reinforcement
- A40 galvanized steel, 2″ face head with welded metal building corner brackets
- ANSI A115.1 4 7/8″ high ASA strike preparation
- ANSI A156.1 4 1/2″ x .134″ hinge preparation
- “B” Label Fire Rated Door

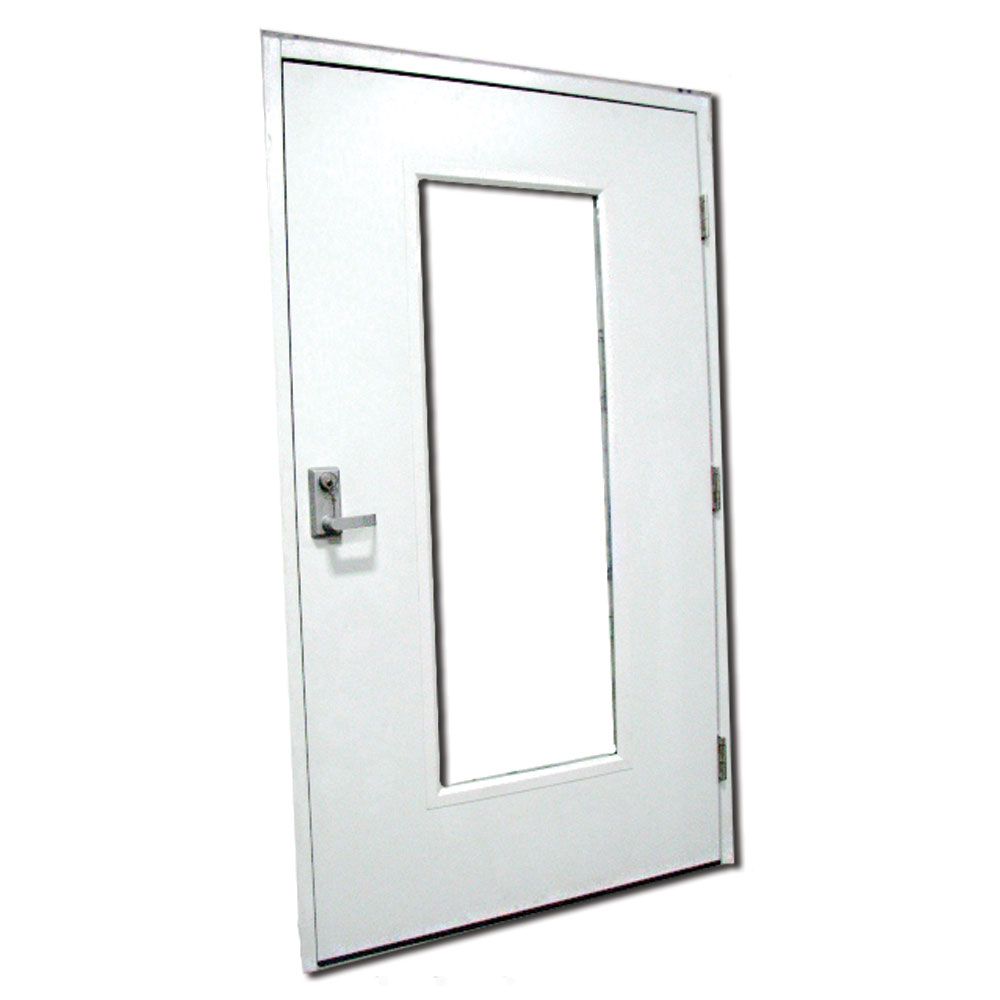

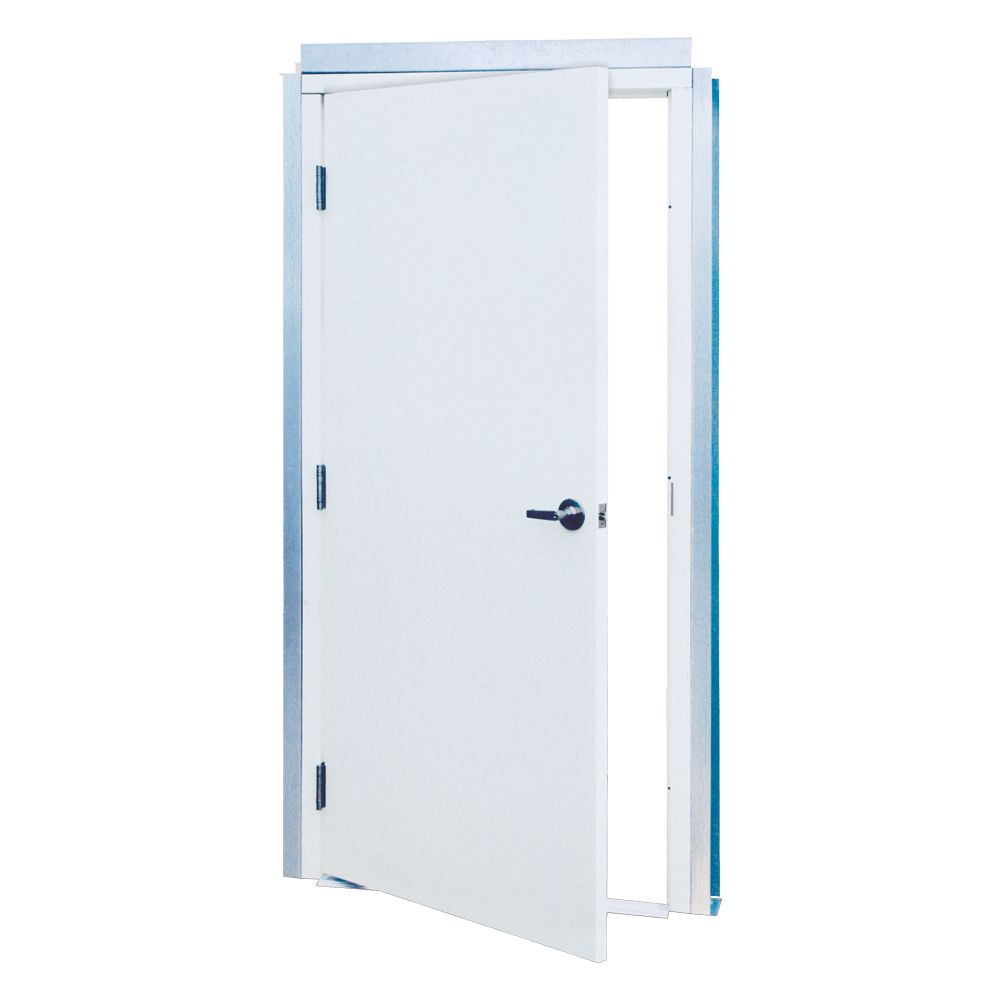

Commercial Door
- Easy Installation
- 20 Gauge Door Panels
- 1 3/4″ Thick Doors
- 16 Gauge Steel Frame
- (3) 4 1/2″ x 4 1/2″ x .134 mortised hinge preps
- ANSI A115.2 bored lock prep cylinder lock (Lock not included)
- Full reversible – Hinge locations are symmetrical
- Closer reinforcement standard
- Pre-painted white prime finish
- 10-gauge hinge reinforcement
- 12-gauge closer reinforcement
- 14-gauge hardware reinforcement
- A40 galvanealed steel, 2″ face head with welded metal building corner brackets

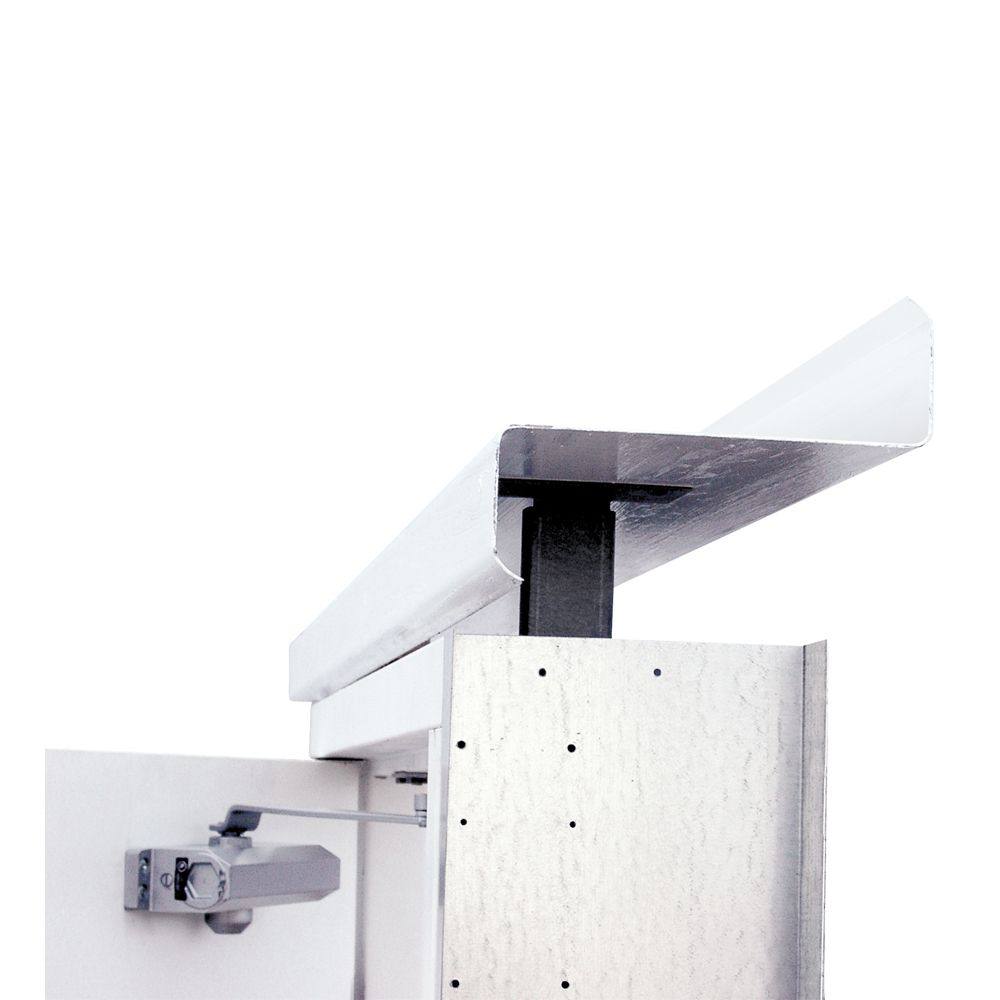

- Optional metal building trim head with 6″ leg
- ANSI A115.1 4 7/8″ high ASA strike preparation
- ANSI A156.1 4 1/2″ x .134 hinge preparation
Thermally Broken Insulated Door
- Commercial Thermal Break
- For heavy-duty construction applications
- Maintenance Free
- Designed for use in Metal Frame or Wood Frame Construction
- Polyurethane Foam Core – Poured in place
Insulated Utility Walk Door
- Low Maintenance
- Easy Installation
- 26 ga. galvanized steel panel
- 16 ga steel jamb
- Insulated Panel – R-13
- 4 Way Universal
- Single Piece 16 ga Jamb
- Weather Fin and bulb keep bad weather outside and good air inside
- Two fin and bulb top and bottom weather seals
- Panel Thickness 1 ¾”

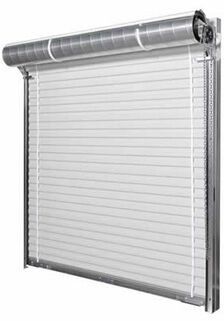

ROLL-UP DOORS
In addition to all our panel and trim options, MetalMax offers a variety of roll-up doors and door accessories. Select trim can be used to create a custom designed door. A commercial sheet metal roll-up door is a quality investment as well as easy to assemble. These door units come pre-assembled for faster installation and less headache.
Specifications
- A drum wheel that is 9 ½” in diameter
- Maximum opening size of 12’ wide by 14’ high (168 sq.ft.)
- A reduced, right hand only chain hoist
- Push-up, hand chain or internal electric operations are available
SLIDING DOOR ACCESSORIES
When adding a sliding door, you need to make sure to have all the needed accessories. From brackets and mounts to door pulls, MetalMax has what you need.

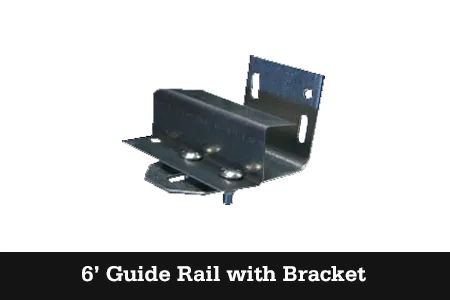

- 6” GUIDE RAIL WITH BRACKET – Holds sliding door close to building using bottom rail system
- WHITE DOOR PULL – Large design. White poly coated. 1,000 spray hours.

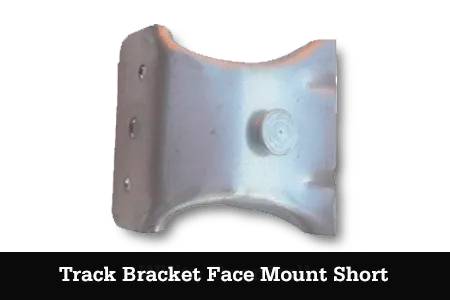

- TRACK BRACKET FACE MOUNT (SHORT) – Used for mounting track system without cover.

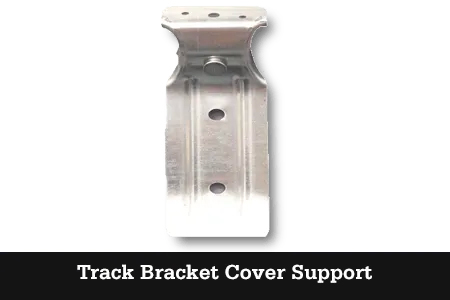

- TRACK BRACKET COVER SUPPORT – Used for mounting with standard cover trim.

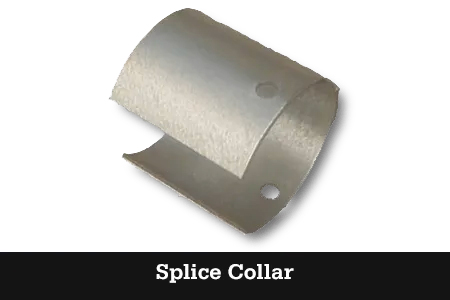

- SPLICE COLLAR – Enables splicing of multiple track sections with perfect alignment.

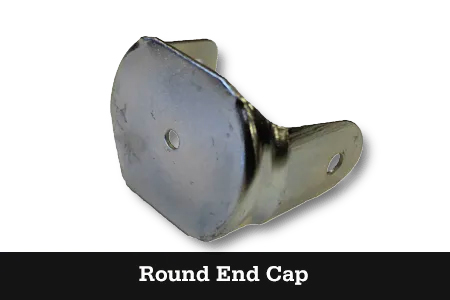

- ROUND END CAP – Adds a finished look to track system. Creates a bird proof barrier.
- INSIDE DOORSTOP – Inside door stop mounts easily to jamb. Stops door when opening/closing.

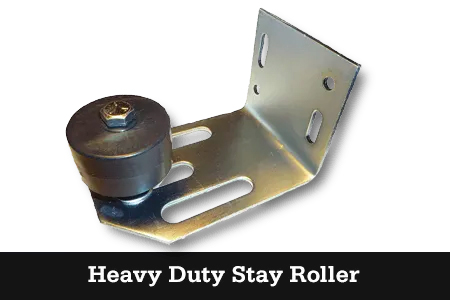

- HEAVY DUTY STAY ROLLER – Galvanized steel bracket. Adjustable mounting slots. Delrin wheels.

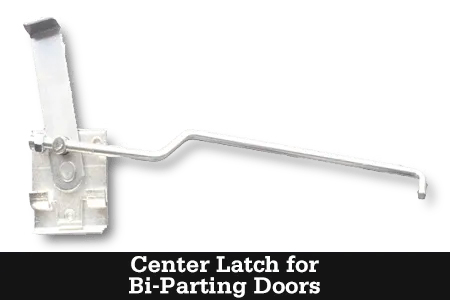

- CENTER LATCH FOR BI-PARTING DOORS – Cam action latch for maximum security.

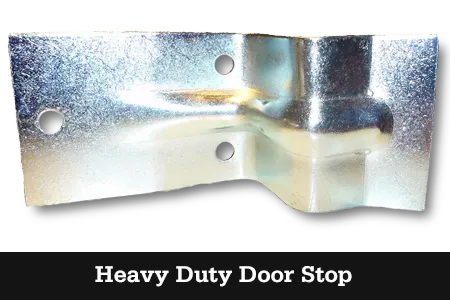

- HEAVY DUTY DOORSTOP – Heavy gauge galvanized steel. Non-adjustable.
- CENTER GUIDE WITH HOLD DOWN – Secures double doors in center closed position

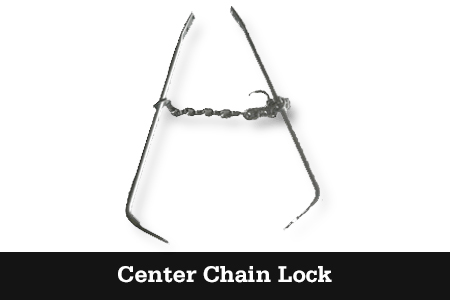

- CENTER CHAIN LOCK – Secures bi-parting doors. Sliding chain provides maximum security.

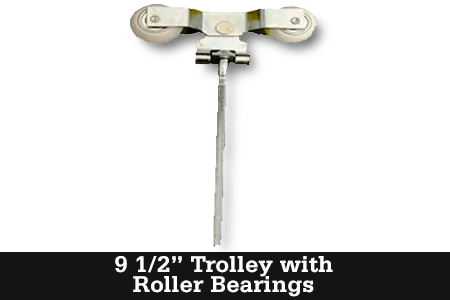

- 9 ½” TROLLEY WITH ROLLER BEARINGS – 4-Way Adjustable Trolley Includes 9 1/2.

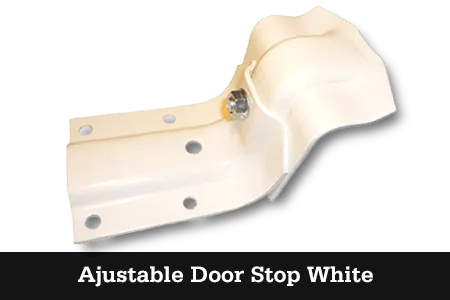

- ADJUSTABLE DOORSTOP (WHITE) – Adjustable design for multiple positions. White polycoated.

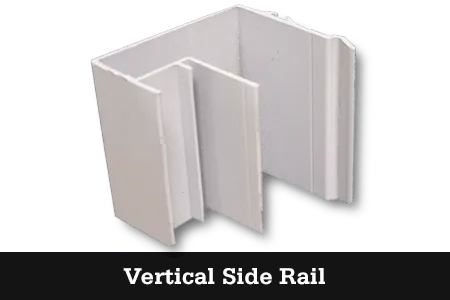

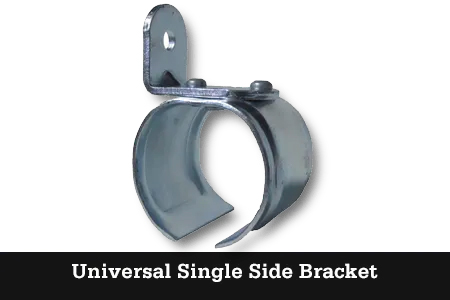

- UNIVERSAL SINGLE SIDE BRACKETS – Heavy duty bracket for hanging sliding door track.UNIVERSAL DOUBLE SIDE BRACKET – Heavy duty bracket for hanging parallel tracks for bypass sliding doorsVERTICAL H-RAIL – Eliminates the gap that forms between two closed door panel edges

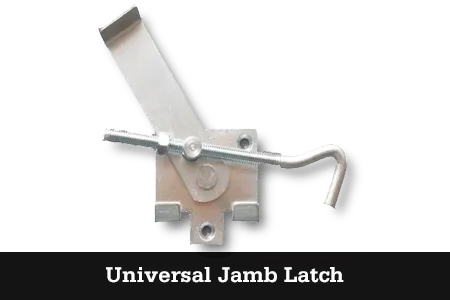

- UNIVERSAL JAMB LATCH – Cam action jamb latch for heavy duty sliding door frames

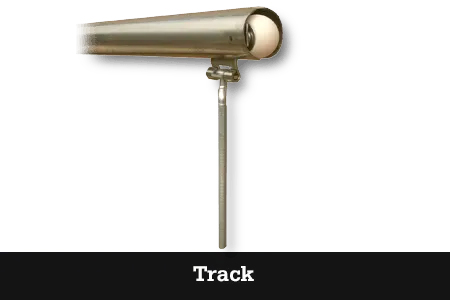

- TRACK – Cylindrical track for hanging wood or metal frame construction sliding doors

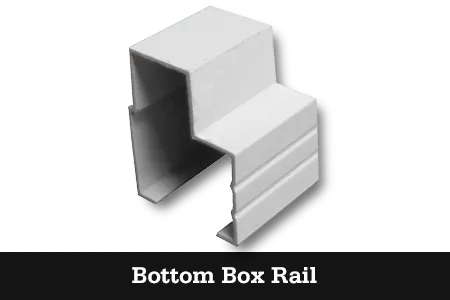

- BOTTOM BOX RAIL – For increased wind resistance and to diminish door sway

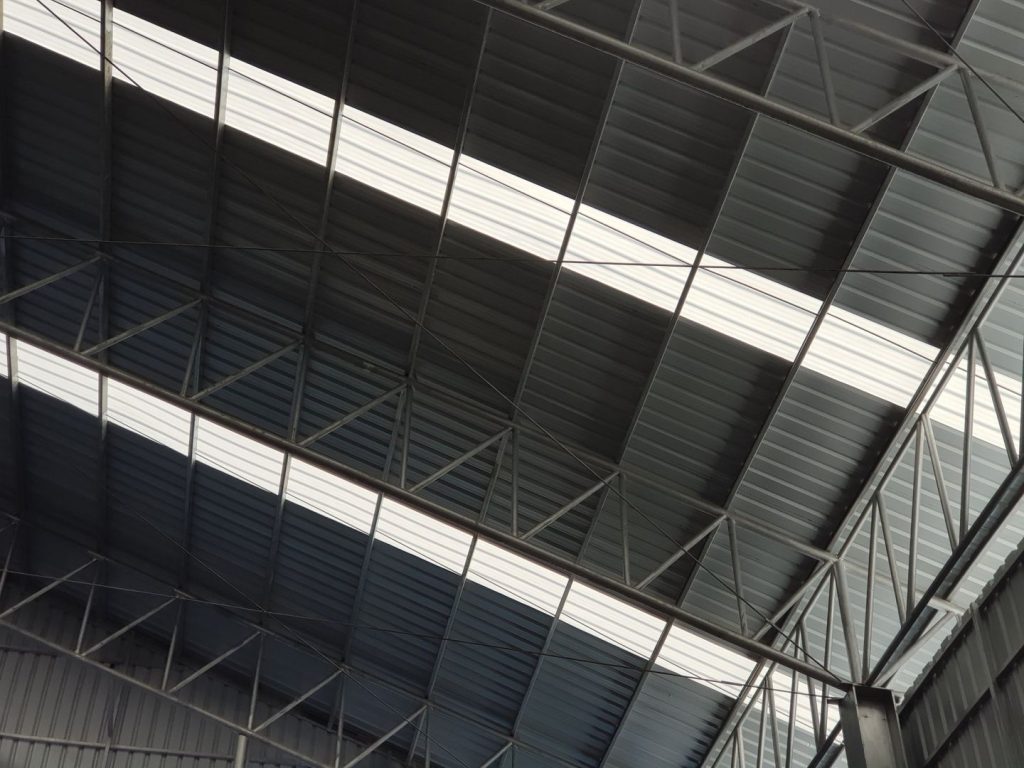

LIGHT TRANSMITTING PANELS
Light transmitting panels are a Corrugated Polycarbonate Sheet that offer a high degree of light transmittance due to its high optical properties.
- Virtually unbreakable: Economical and lightweight yet is 10 times stronger than acrylic and 200 times stronger than glass.
- Warranty: MetalMax sells SunSky panels, which carry limited 10-year light transmission and breakage warranties from the manufacturer.
POST BRACKETS

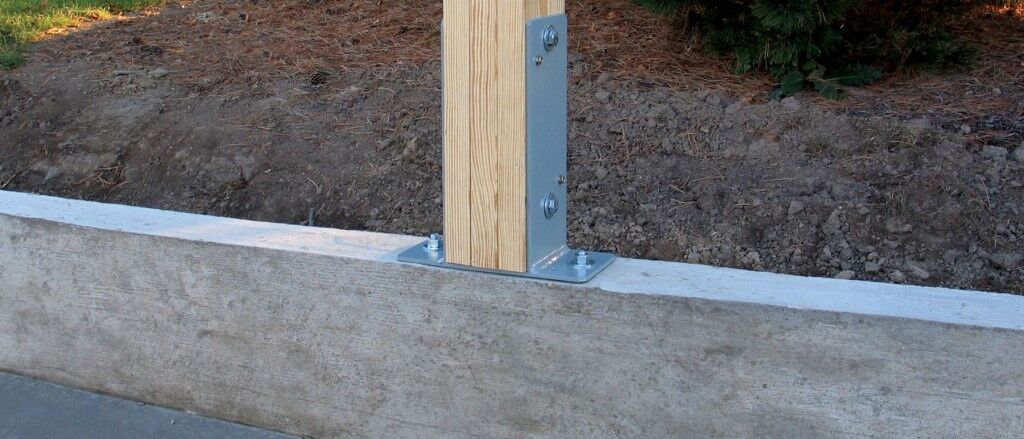

Post brackets are the perfect solution for connecting post frame structures to traditional concrete foundations such as monolithic slabs, formed walls and existing concrete pads. This heavy-duty anchor system can be used for new construction, post repair, renovations and more.
