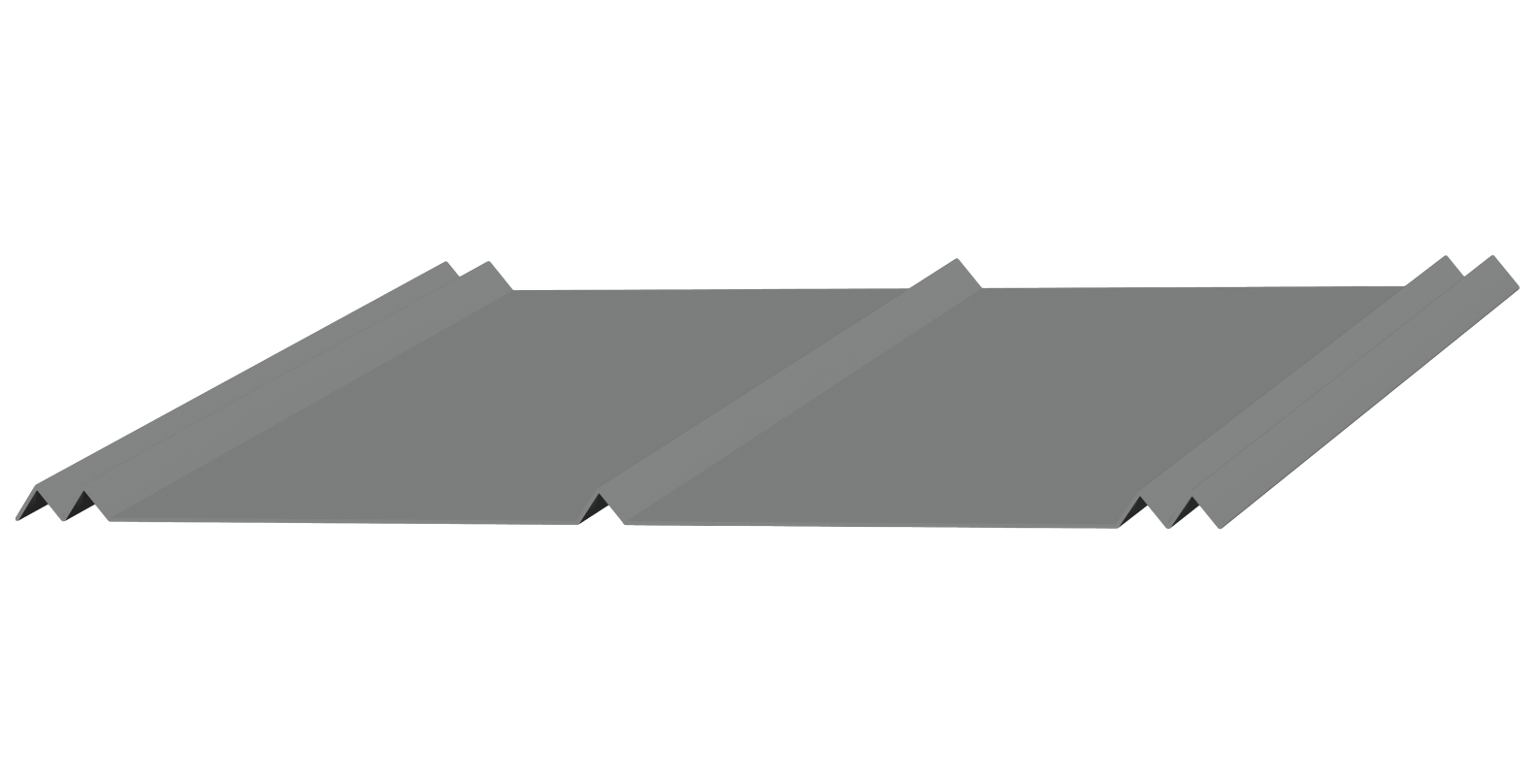

5V Crimp

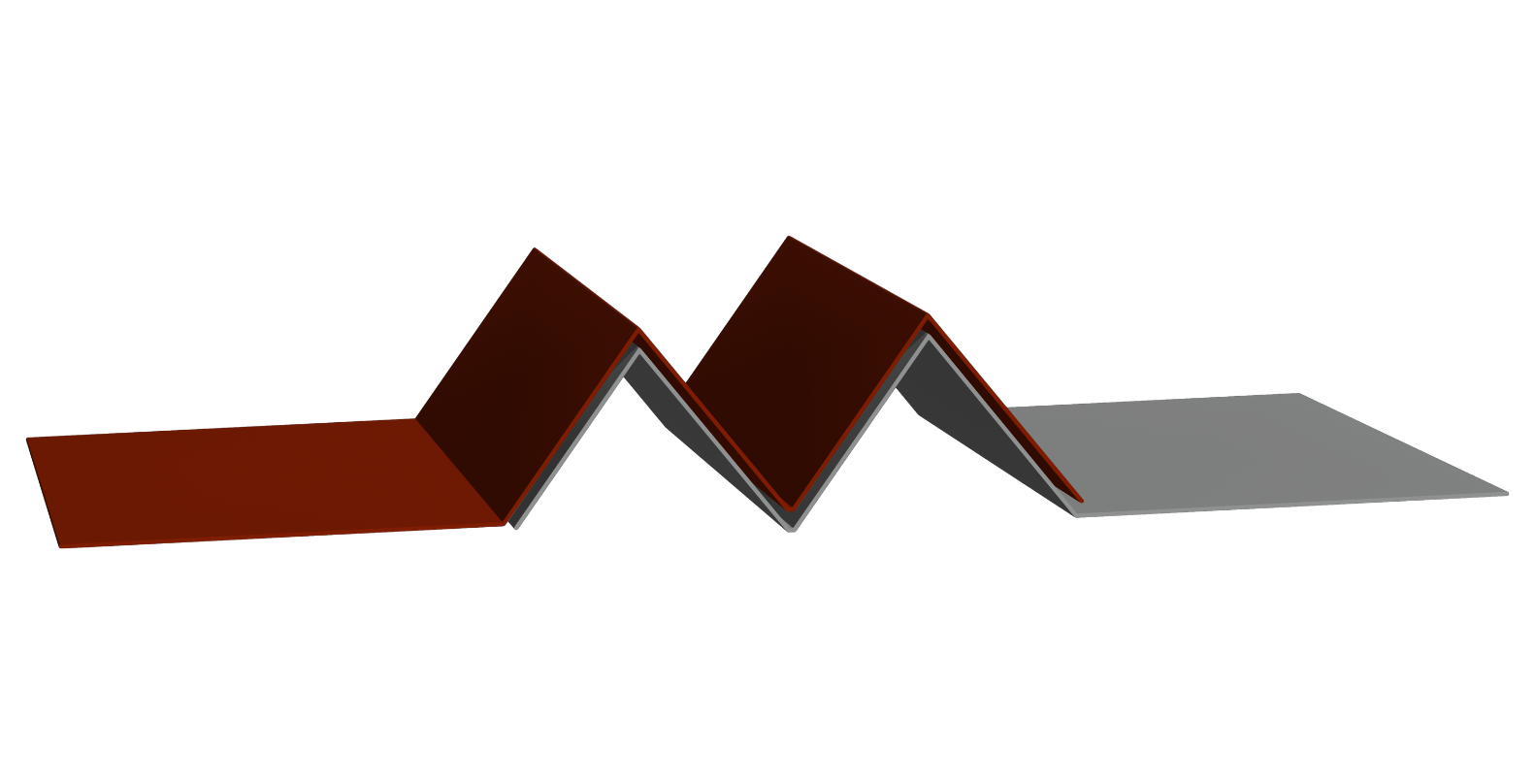

5V Crimp is a very traditional roof style in Florida and is commonly used for residential roofs and agricultural buildings, but will work well for light commercial applications as well.  Double inverted-V shape ribs near the panel edges creates the classic look, but also conceals an anti-siphoning channel that improved leak resistance in extreme wind and rain, making them a great choice where durability can be tested by the weather. It utilizes exposed fasteners, has a 24” coverage with 3/8” high ribs. Installation requires a solid substrate roof deck.

AVAILABLE COLORS

*The 5V Crimp panel is only available in Galvalume.

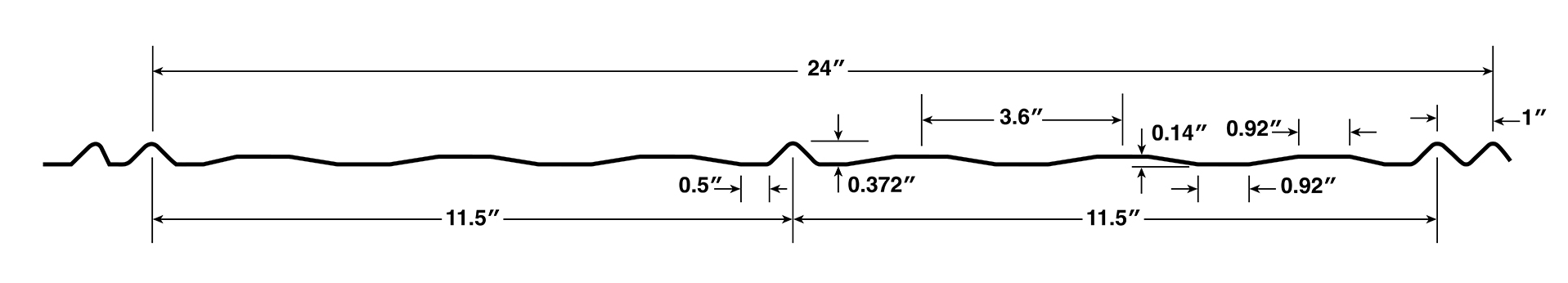

Panel close-ups

  • Coverage Width = 24”
  • Rib Height = 3/8”
  • Available Gauges = 29, 26 or 24 (depending on color)
  • Material = AZ55 Galvalume® Coated Steel
  • Installation Substrates = Solid Substrate Only
  • Fasteners = Exposed
  • Color Finish = Sherwin Williams Weather XL
  • Available Colors – Galvalume
